Product Details
＋

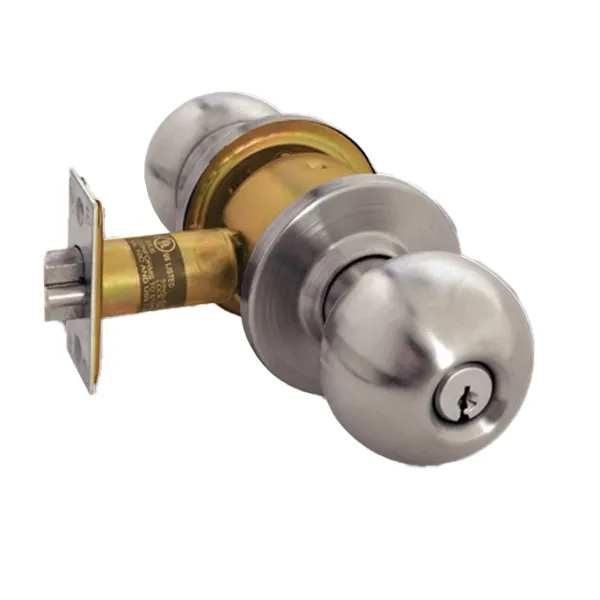

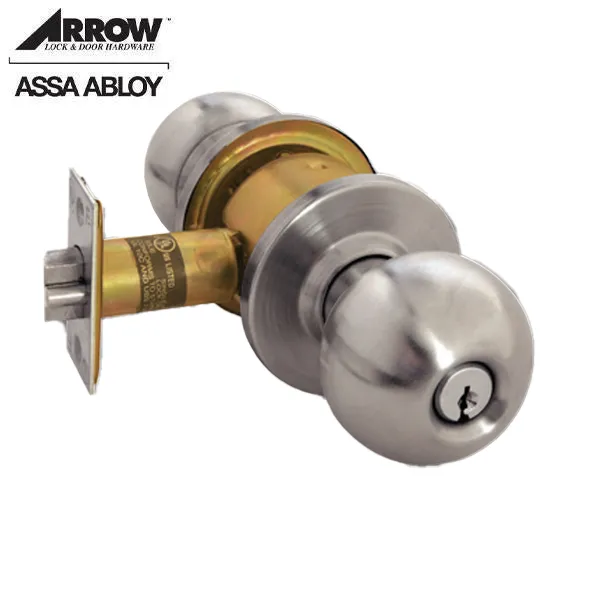

The RK Series has been enhanced to offer a wide variety of finishes and functions. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
More Details Below
| Construction | Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8” (54mm) bore through door |
| Backset | 2-3/8” (60mm) or 2-3/4” (70mm) |
| Door Thickness | Fits 1-3/8” (35mm) to 1-3/4” (44mm) doors standard |
| Latch | Brass 1/2” (13mm) throw, UL Listed, guarded latchbolt on all locking functions. |
| Latch Front | 1” x 2-1/4” (25mm x 57mm) for 2-3/8” backset (60mm) or 1-1/8” x 2-1/4” for 2-3/4” (70mm) backset. |
| Exposed Trim | Brass or stainless steel. Roses are 2-1/2” (64mm) diameter. Total projection from face of door is 2-3/4” (70mm). |
| Strike | 4-7/8” ANSI (124mm), 2-3/4” (70mm) T strike, or 2-1/4” (57mm) full lip strike. |
| Cylinder | Schlage C keyway. |
| Keys | 2 brass keys |
| Handing | Non-handed. |
| Manufacturer Warranty | Five Year Mechanical Warranty. |
| Finish | Satin Stainless Steel |
