Name: Baldwin Estate - Soho Lever Set - R026 Rose - Optional Finish - Passage - Grade 2
SKU: 2040166

Product Details ＋

BLD-5485V.XXX.PASS

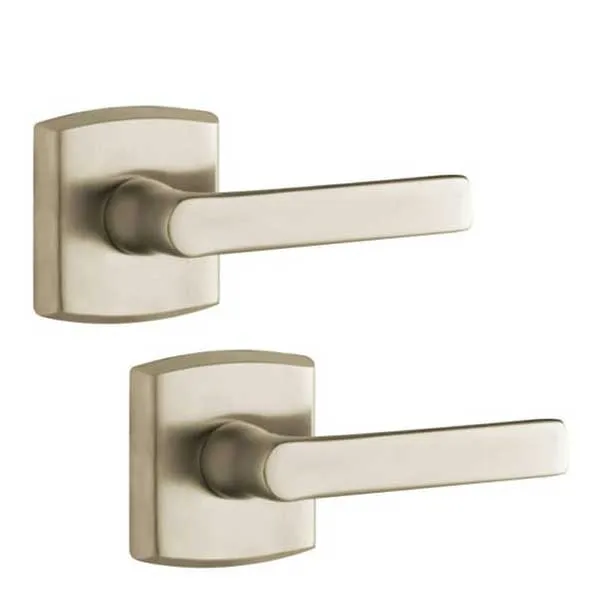

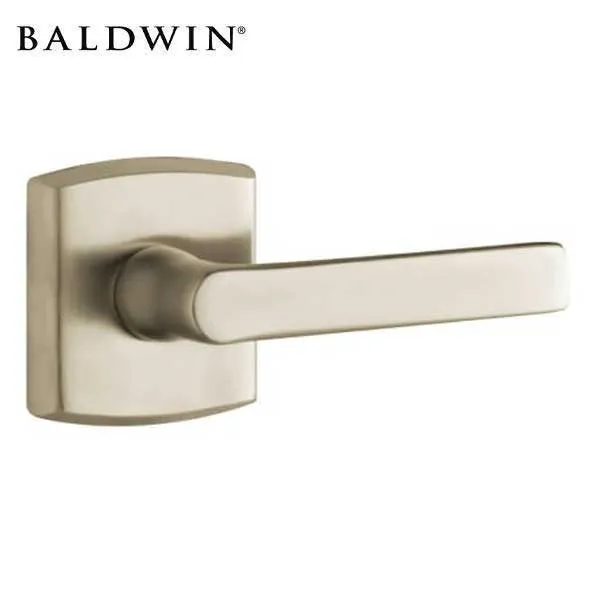

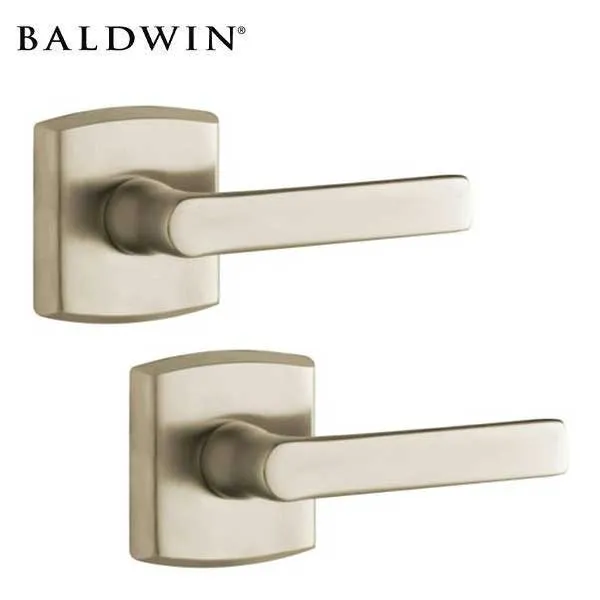

Baldwin 5485V.PASS Passage Lever Set with R026 Roses and Concealed Screws

Passage Function: Baldwin's passage leversets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where no locking is necessary. Sometimes passage levers are used in conjunction with a deadbolt for an entrance or back door.

Features:

Finished and polished by hand
Anti-friction nylon insert provides quiet closing and reduces strike plate scratches
Working parts are precisely machined for maximum strength

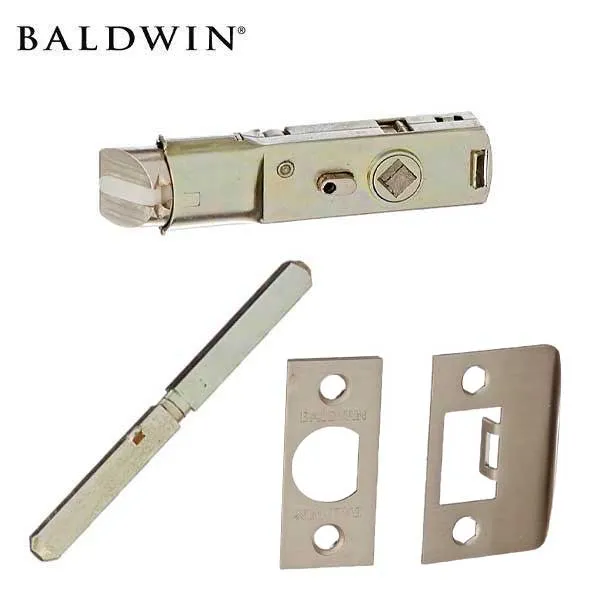

Comes with R026 rose and full lip strike

Specifications

Configuration	Leverset
Function	Passage
Cylinder	No Cylinder
Keyway	No Cylinder
Handing	Reversible Left or Right
Finish	056 - Lifetime Satin Nickel 150 - Satin Nickel 102 - Oil-Rubbed Bronze
Backset	Adjustable 2-3/8" or 2-3/4"
Rose Size	2.75" x 3.00"
Cross Bore	2-1/8"
Door Thickness	1-3/8"
Lever Length	4.367"
Concealed Screws	Yes
BHMA Certification	Grade 2
