Product Details
＋

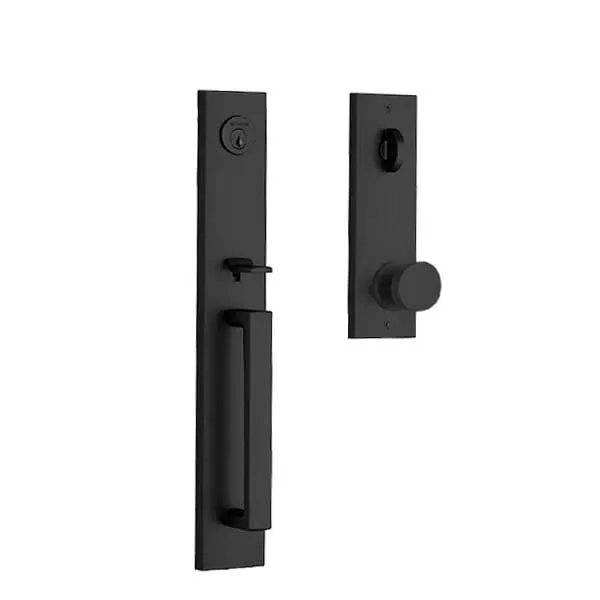

Santa Cruz Contemporary Square Rose - Standard Keyed Entry Handleset with Contemporary Knob and Square Interior Trim
Emergency Egress: Baldwin's Emergency Egress function features an interconnected lock to simultaneously retract the deadbolt and door latch to quickly open your door
Features:
- Tested to exceed ANSI/BHMA Grade 2 security
- Solid forged brass construction built to last a lifetime.
- Includes all mounting hardware for quick and easy installation
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security.
- Interior comes in same finish as exterior. If split finish is desired, please contact customer service.
- Accommodates door thickness 1.75" to 2". Up to 2-1/2" thick door with service part kit (Part Number: 8BR0701).
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
- The Satin Black finish is built Keyed Different (KD) meaning any Hardware will be sent keyed differently from each other.
- The Polished Chrome Finish comes in Keyed Alike (KA2), meaning up to 2 Handlesets can be keyed the exact same.
Specifications
| Configuration |
Handleset |
| Cylinder | Single Cylinder - 6 Pin C Keyway |
| Keying | Must Specify KA, otherwise its KD |
| Handing | Right Handed |
| Finish | 190 - Satin Black |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Backset | 2-3/4", 2-3/8", Adjustable |
| Center to Center |
5.5 in. |
| Cross Bore |
2-1/8" |
| Door Thickness |
1.75"- 2" |
| Latch | Drive-In, Round Corner, Square Corner |
| Strike | Dual Strike Kit |
| Grip Center to Center |
8.40625 in. |
| Knob Projection |
2.40625 in. |
| Trim Height |
17.5 in. |
| Trim Width |
2.6875 in. |
| Overall Height |
17.5 in. |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page . Once you have the ticket contact UHS Hardware for the return.
