Product Details
＋

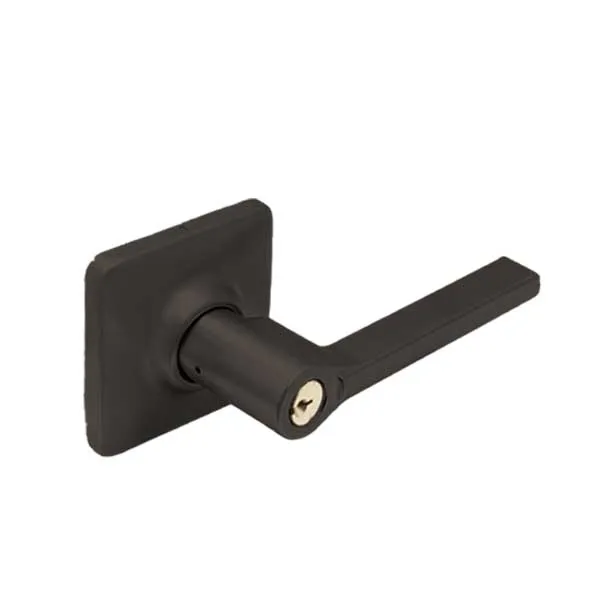

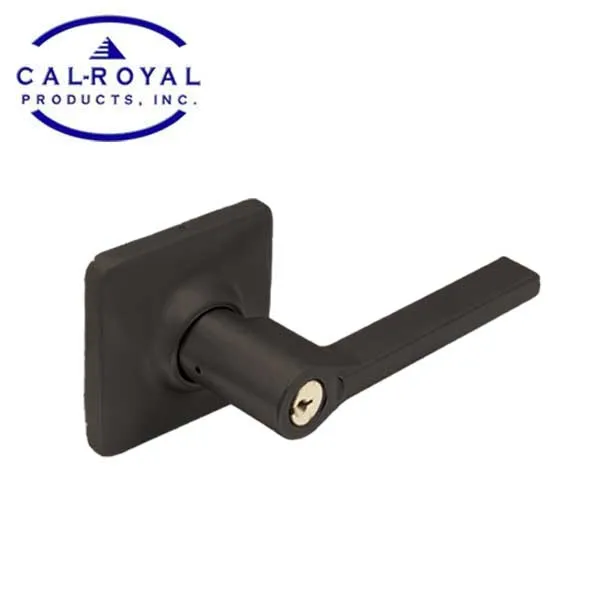

Cal-Royal Challenger series door lever set. For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
Features:
- BHMA Certified Lifetime Warranty, Grade 2
- Conforms with ANSI A 156.2 Series 4000, Standard Duty, Barrier Free,
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Solid brass 6 pin “C” keyway cylinder
- Push in and turn button function
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Meets the Buy American Act
Specifications:
| Function |
Storeroom |
| Door Ranges | 1 ⅜” to 2” thickness |
| Backset | 2 ¾” Standard |
| Latch Face Plate |
2 ¼” x 1”, square corner packed with ⅛” plastic filler for 1 ⅛” width. |
| ANSI Standards |
Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles. |
| Keying | 6-pin “C” keyway cylinder, 2 keys per lock. |
| Strike | ASA strike standard, “T” and full lip strike available on request. |
| Finish | Black |
| Grade | Grade 2 |
