Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Current, Primary | 1.5 to 150 A |
| Current, Switching | 0.3 A |
| Frequency Response | 6 to 100 Hz |
| Function | Current |
| Height | 4.22" (107.2mm) |
| Length | 3.5" (88.9mm) |
| Measurement Range | 150 A |
| Mounting Type | Panel Mount |
| Standards | UL Listed |
| Technology | Hall Effect |
| Termination | Screws |
| Type | Hall Effect |
| Voltage, Switching | 135 VAC/VDC |
| Width | 0.071" (1.8mm) |
Overview

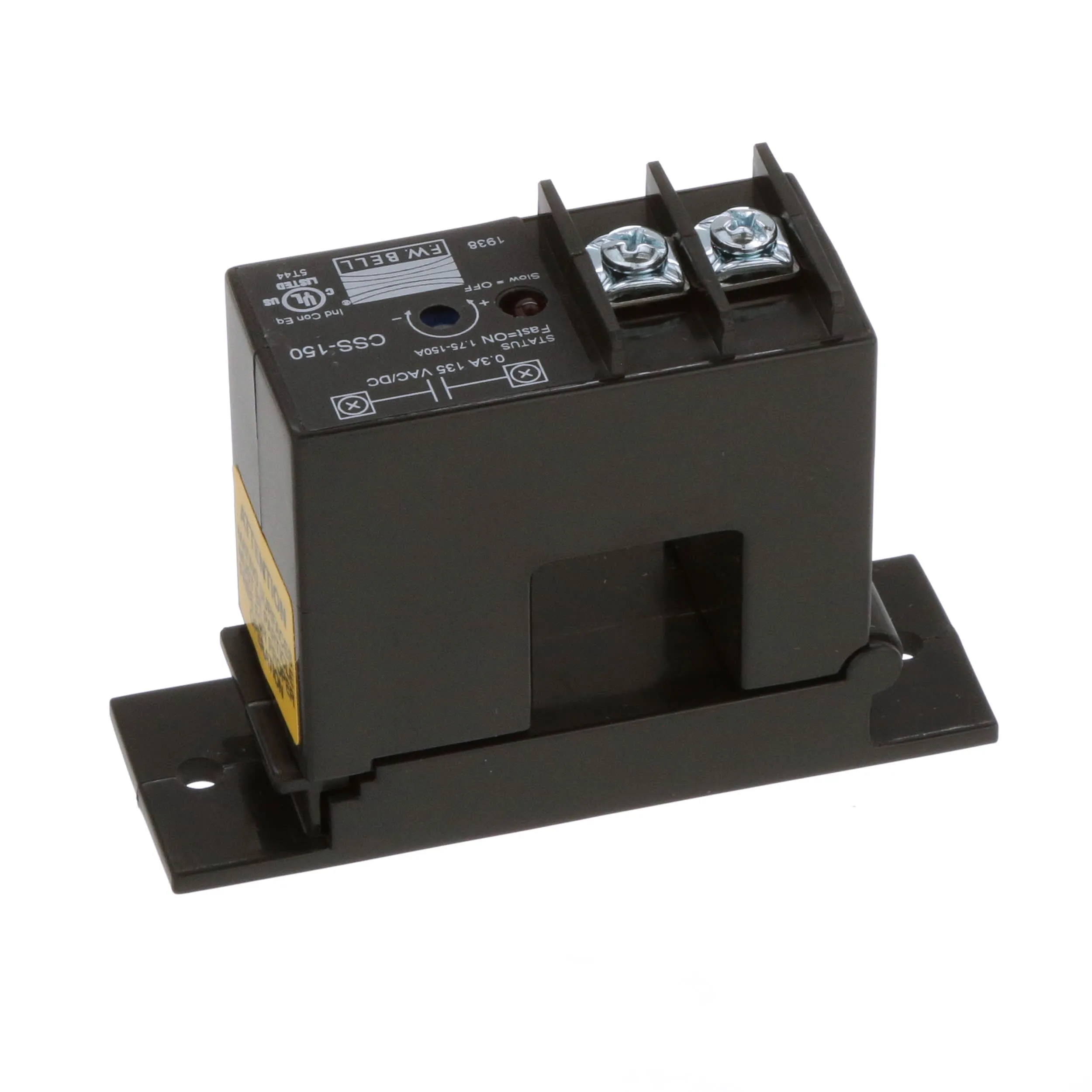

Detect AC current from 1 to 150 A and provide a switched output when the current exceeds the adjustable trip point. Adjustment is made by a multi-turn pot. A flashing LED gives visual indication of the trip point. Model CSS-150 clamps over existing wiring for easy installation. UL Listed.
