Product Details
＋
The Hakko FU-601 Robotic Integration Soldering Module is designed to communicate with the Hakko FU-500 Intelligent Solder Feeder and integrate with various robotic systems to achieve low-cost soldering automation.
Specifications
| Model Name | FU-601 |
| Part No. | FU601-60X (Straight Iron) |
| Input Voltage | 120 VAC 50/60 Hz |
| Power Consumption | 300W |
| Temperature Range |
120o-940oF (50o-500oC) |
| ESD Safe | Yes |

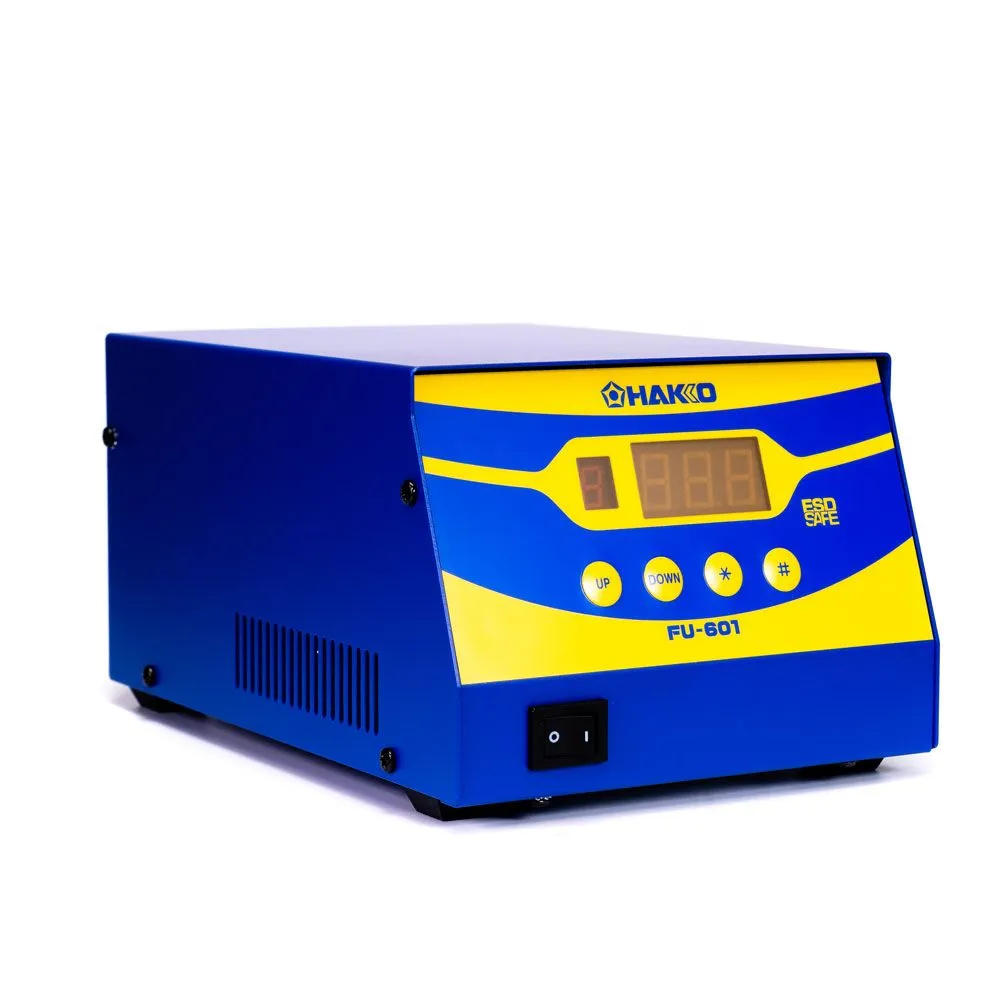

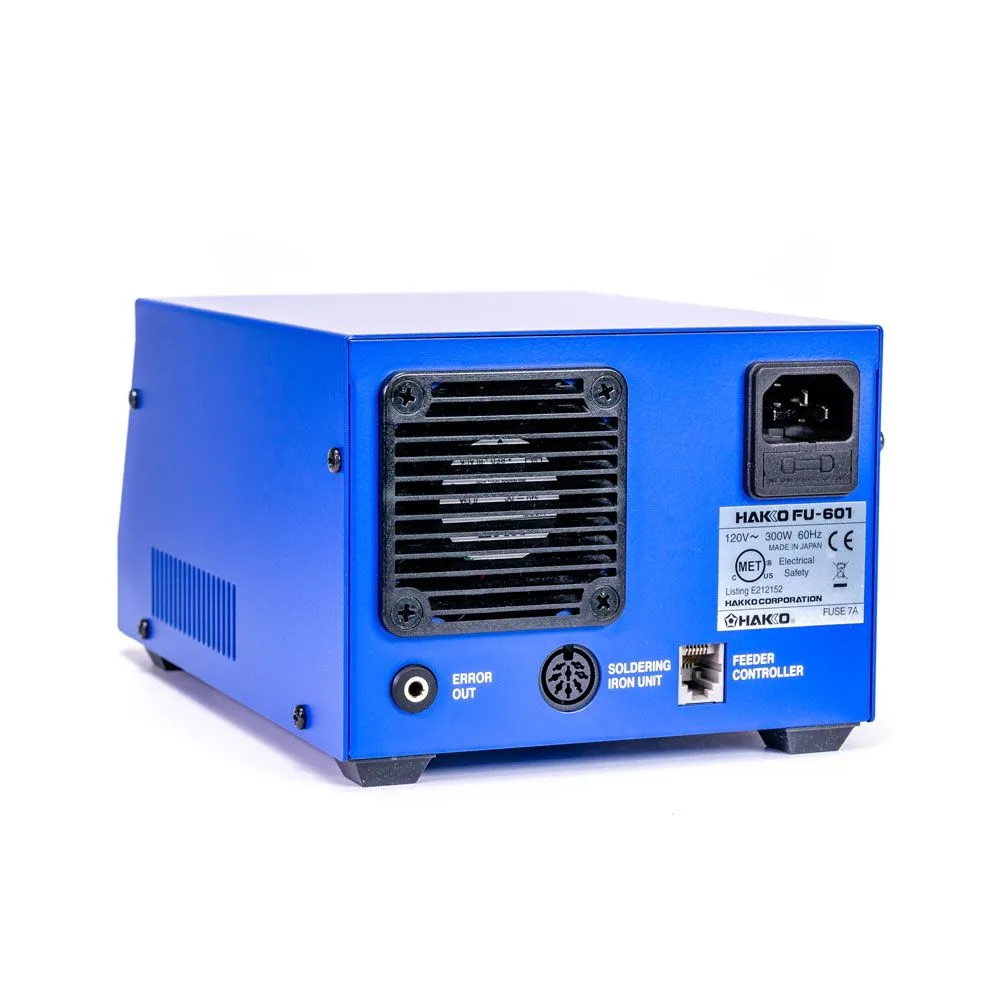

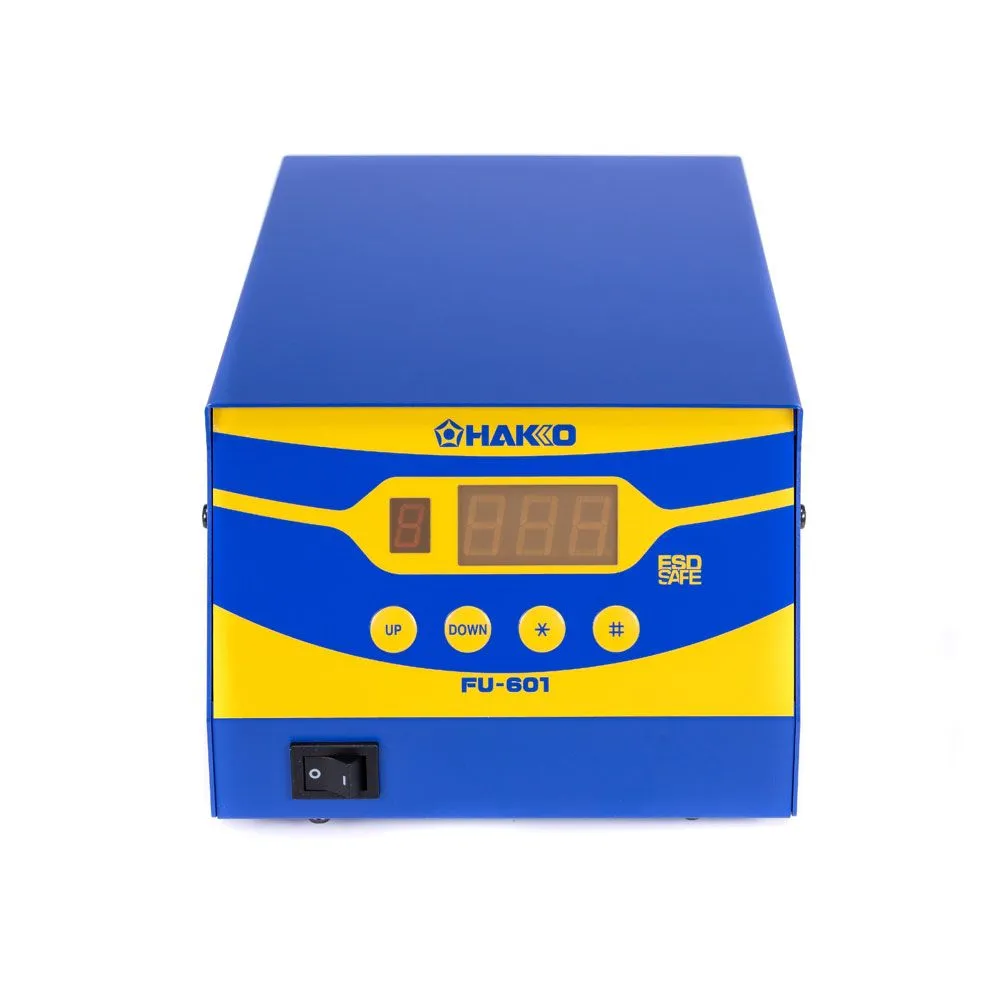

Station
| Output Voltage | 29 V |
| Outer Dimension | 5.7 x 4.2 x 8.3 in. (145 x 107 x 211 mm) |
| Weight (w/o Cord) | 8.8 lb. (4 kg) |

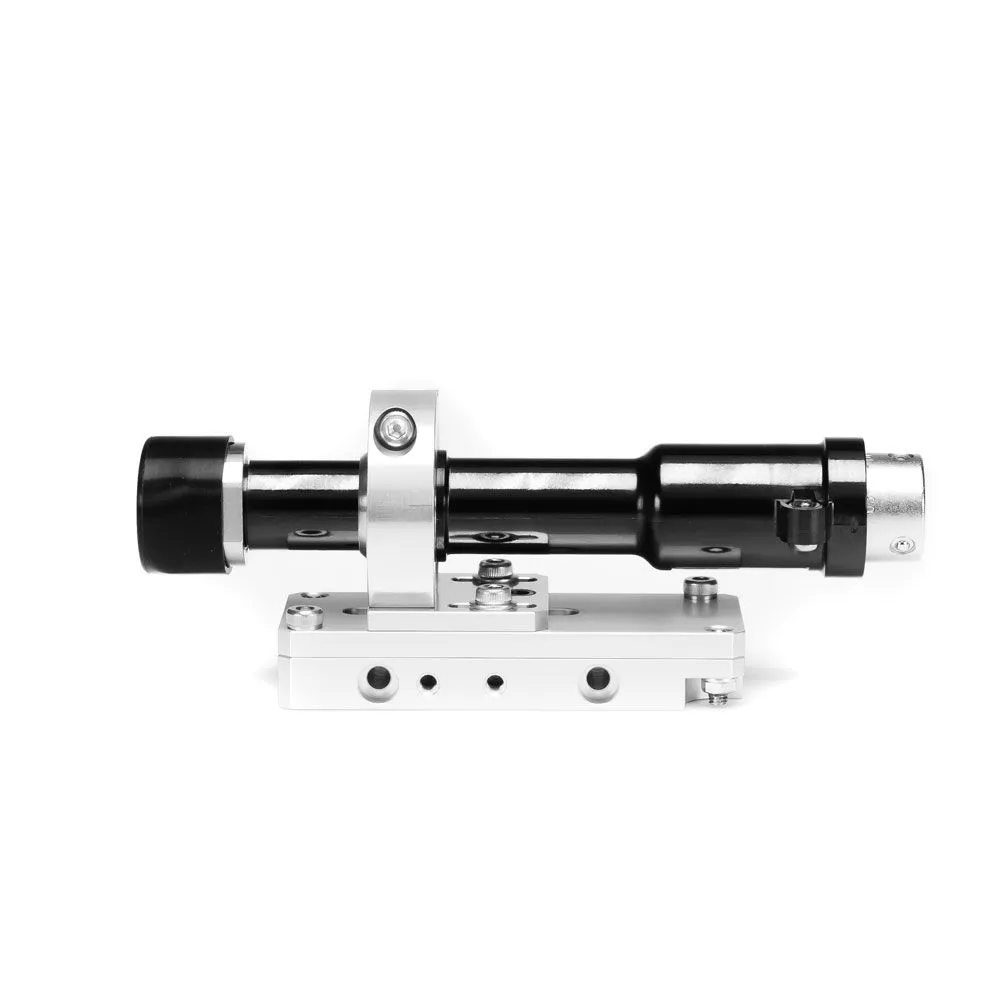

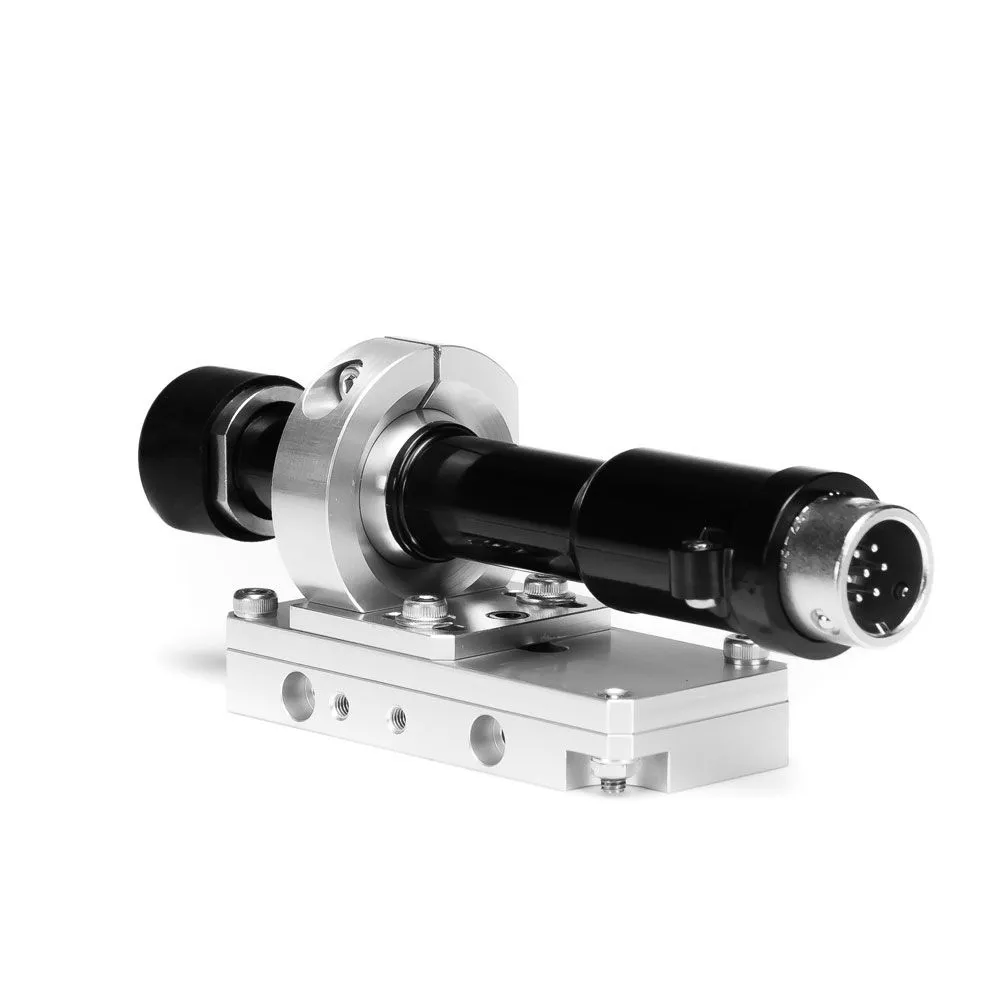

Handpiece
| Model No. | FU-6001 |
| Power Consumption | 260W (29V) |
| Tip-to-Ground Resistance | < 2ohms |
| Tip-to-Ground Potential | < 2mV |
| Heater | Composite Ceramic Cartridge |
| Tips1 | and Series |
| Cord Length | 16.4 ft. (5 m) |
| Total Length (w/o Cord)2 | 7.4 in. (194 mm)3 |
| Weight (w/o Cord)2 | 0.38 lb. (171g) |
1Tips not included
2As measured with TX2-4XD tip installed

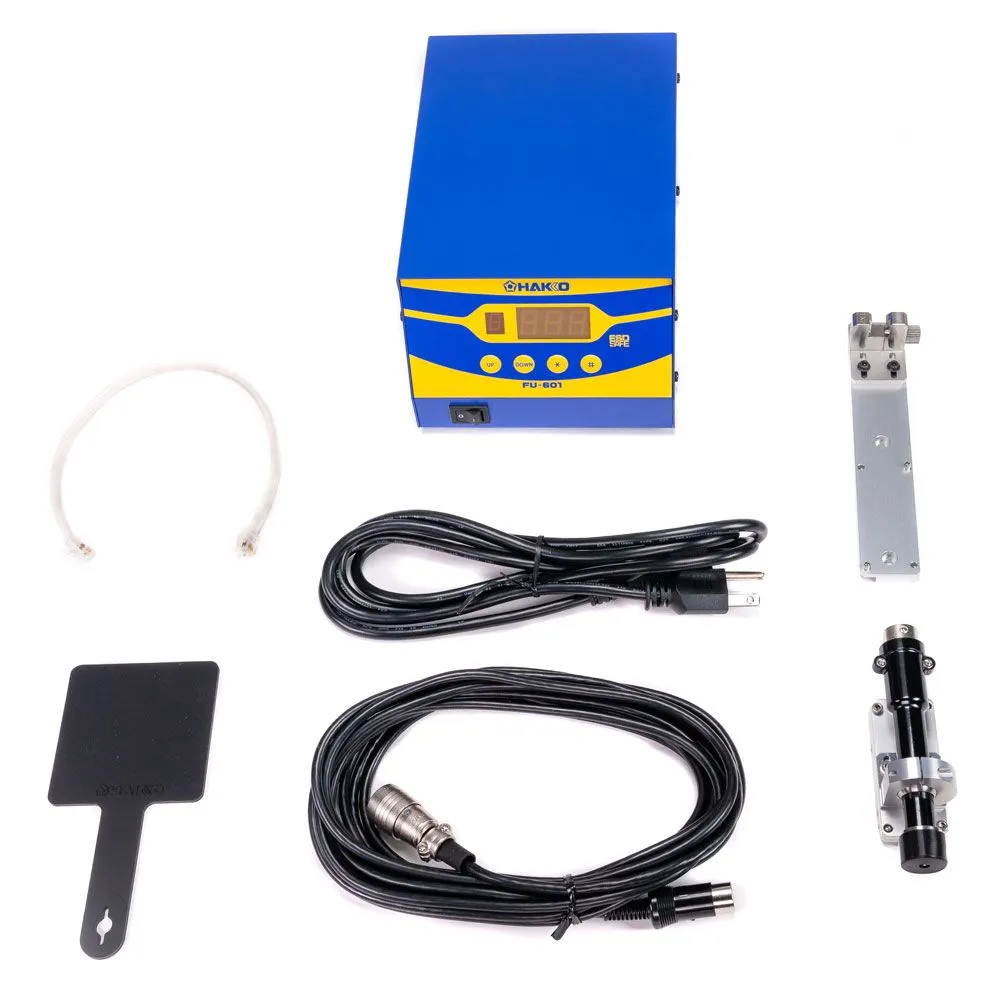

What's in the box?
| Description | Part No. |
| FU-601 Station | FU601-60X |
| Soldering Handpiece (Straight) | |
|

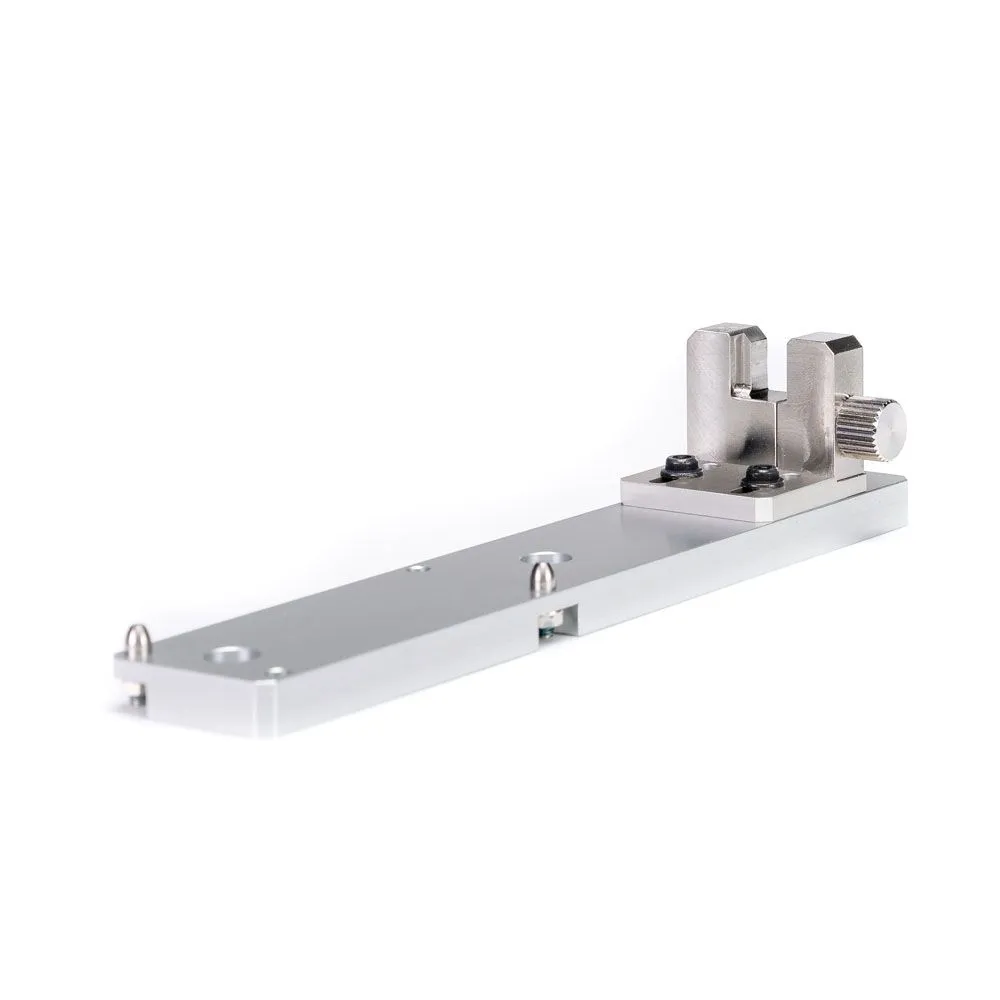

Iron Mount | |
| Tip Alignment Tool (TX1) | |
| Tip Alignment Toool (TX2) | |
| Iron Cable | |
| Connecting Cable | |
| Flux Cover | |
| Feeder Unit Attachment Screw | -- |
| Heat Resistant Pad | |
| Power Cord | |
| Instruction Manual | -- |

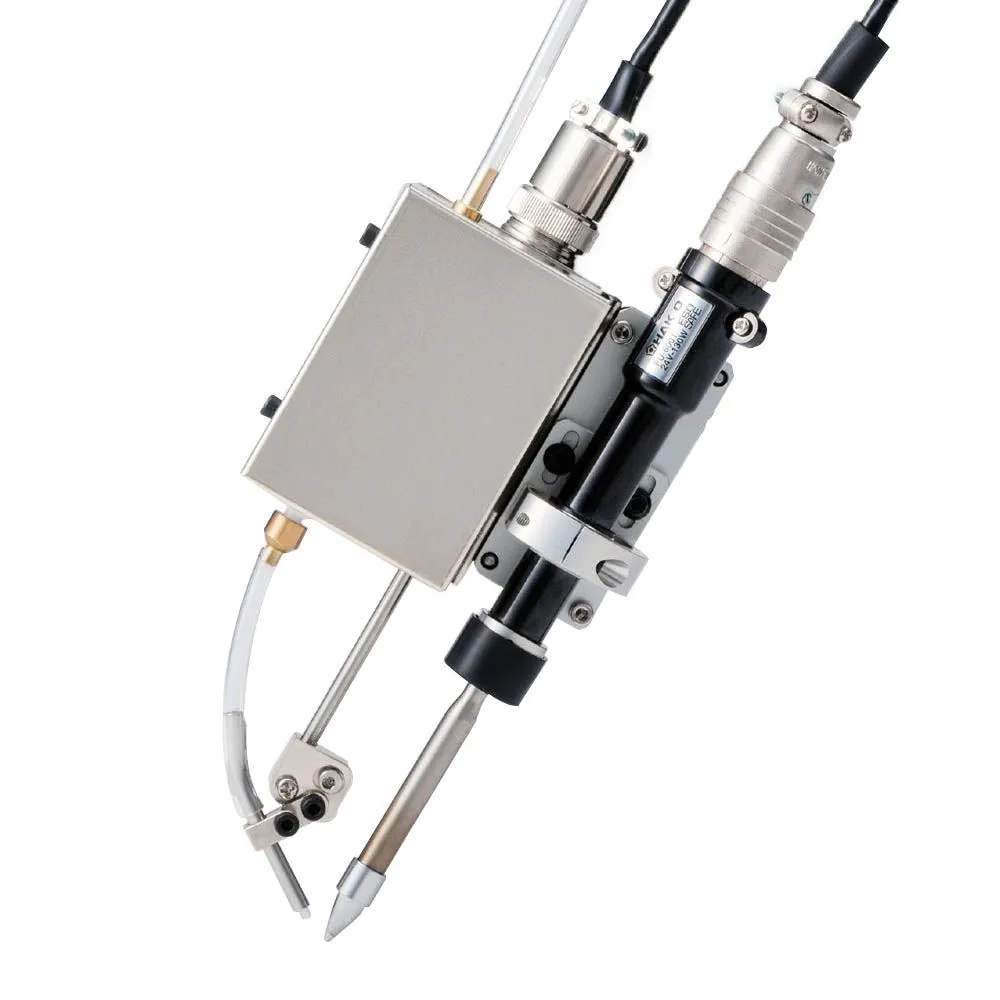

The Hakko FU-601 Robotic Integration Soldering Module is designed to communicate with the Hakko Intelligent Solder Feeder and integrate with various robotic systems to achieve low-cost soldering automation.
The tips can be easily replaced and easily re-positioned using the tip alignment tool.
Various nozzles are available to match the tip shapes and can be installed onto the iron with an optional Nitrogen (N2) adapter.
