Product Description
-

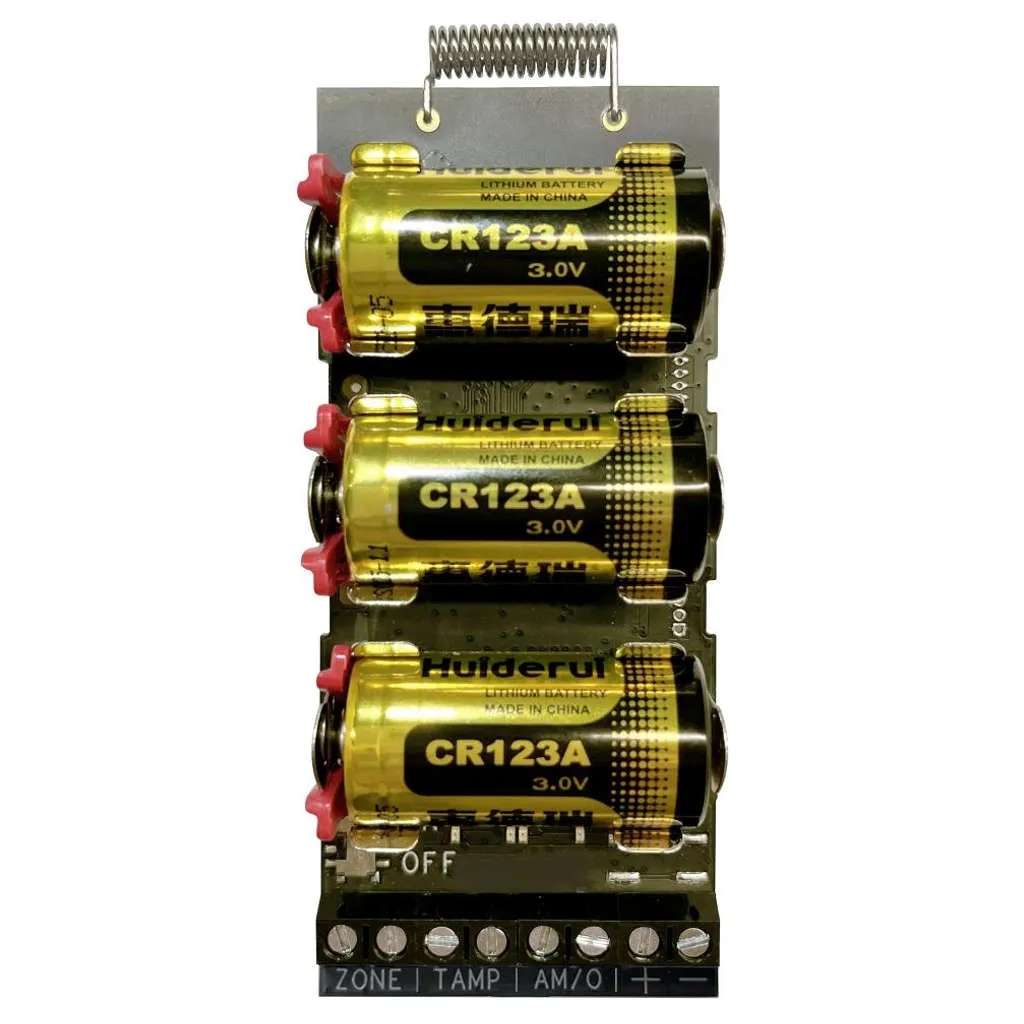

DS-PM1-I1-WB wireless single input transmitter offers a connection of third party wired detectors like outdoor PIR,to AX PRO alarm system
-
The alarm types and zone parameters can be set through APP by installers easily,small size design is convenient for installation
-
Also,transmitter has a feature of detecting device removal by accelerometer application, if someone moves the detector away, an alarm will be reported immediately
-
Key Features
-
Small size design, which can be put into wired detector easily
-
433MHz two-way wireless communication
-
LED display, show the real status of device
-
With one tamper input and one PGM, can be used as zone input or alarm outpout
-
With 3.3v voltage output, can be used to power up external wired detector
-
Detection of device removal by accelerometer
Product Specification
| Brand | Hikvision |
| Product Type | Transmitter |
| Product Model | DS-PM1-I1-WB |
| Wireless Transmission | |
| RF Frequency | 433 MHz |
| RF Method | Two-way communication |
| RF Modulation | 2GFSK |
| RF Distance | 1300m |
| Hardware Features | |
| Serial port | 1 |
| Power Switch | 1 |
| Alarm Input | 1 Alarm, 1 Tamper |
| Alarm Output | 1 PGM, AM/Output |
| 3.3v Output | 1, up to 10mA |
| Electrical Characteristics | |
| Power Supply | 3 CR123 |
| Operation Humidity | 10%~90% |
| Operation Temperature | –10℃ ~ 55℃ |
| Power Consumption | Quiescent current: 40.29 uA Max current: 47.85mA Voltage: 3 VDC |
| Battery Life Span | Up to 5 years (standby time) |
| General | |
| Installation Method | Put inside Wireless Ready Detector |
| Dimension(WxHxD) | 102 x 41 x 20 mm |
| Weight | 35g(Without Battery), 90g(With Battery) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 10.2 x 4.1 x 2 |
| Unit of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Type | Transmitter |
| Manufacturer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : 91-22-4041 9900 |
| Packer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : 91-22-4041 9900 |
| Country of Origin | India |
