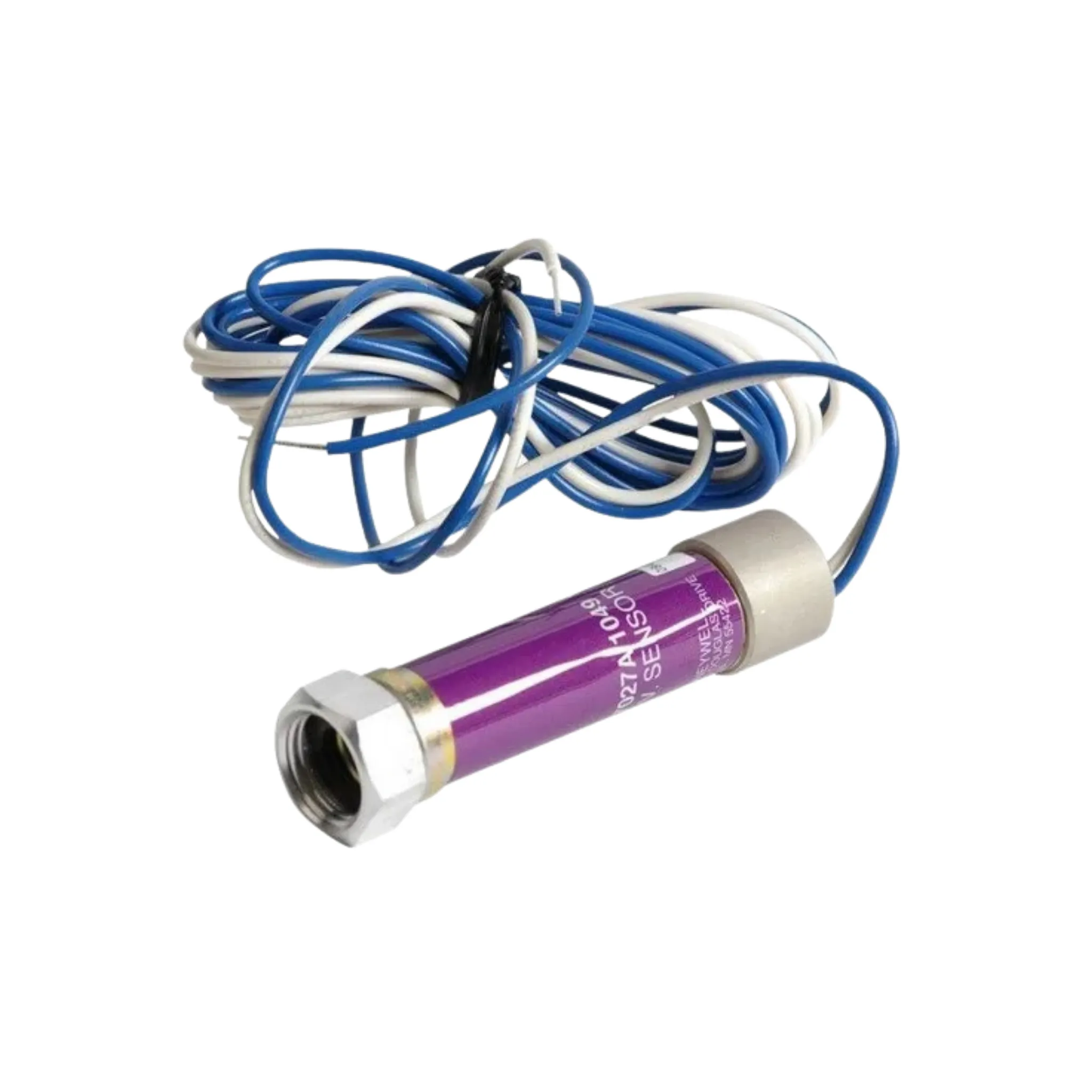

Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.

Features:

Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
Detectors can be wired in parallel for difficult sighting applications.
C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
Allows for blast tube mounting due to compact size.
C7044 mounts with a two screw bracket.
The C7044 UV sensor tube is enclosed in a stainless steel housing.
C7044 has the capability of side or end viewing in flame monitoring applications.

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: C7027A-1023
Product type: Flame Sensor
For use with: Flame Safeguard Controls with Ultraviolet Amplifiers
Detection type: Ultraviolet Flame
Dimensions (in.): 1 1/16 in. diameter x 4 in. long
Lead Length (in.): 96 in.
Ambient Temperature Range (F): 0 F to 215 F
Mounting: Integral nut for 1/2 in. sighting pipe.
