• Remotely monitor and control (open and close) your garage door using any Insteon controller (sold separately)
• Includes sensors that provide status on whether the garage door is open or closed
• Compatible with traditional 2-wire garage openers only - if your garage control button features a display panel, this kit is not compatible
• The included Insteon I/O Module (2450) communicates over powerline only, which may cause issues if you are trying to remotely operate your garage from Insteon devices on a different electrical phase (circuit) or from an Insteon Mini Remote
• Recommend having at least one other dual-band device on the same phase to bridge the I/O Module with Insteon RF-only or Dual-band devices
• I/O Module is also available without accessories:

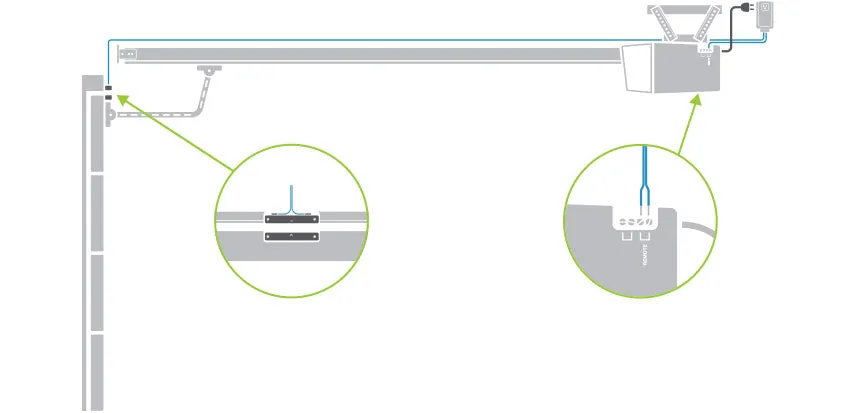

How the Kit Works

I/O Module's output relay wires to your garage door motor just like your existing button, allowing you to remotely operate your garage. The included garage door sensor mounts to the garage door and is wired directly to I/O Module's sensor input. Receive instant alerts when using the Insteon Hub and running Insteon for Hub app (sold separately).

Do More with the I/O Module

Not interested in controlling your garage with Insteon? The Insteon I/O Module lets you monitor and control any low voltage devices such as alarm sensors, electric door strikes, and contact closures as part of your Insteon home automation network.

With one dry-contact sensor input you can control many Insteon devices throughout the house. Plus, use the built-in single-pole double-throw (SPDT) switch and connect any low voltage-powered device for continuous or momentary operation. Create your own remote-control door lock using an electric door strike and power supply, or use a security sensor to turn Insteon controlled lights on or off. I/O Linc acts as a repeater for all powerline Insteon signals, is compatible with Insteon and X10 products, and has a pass-through outlet for other AC devices.

When controlling devices like pool valves, you have the ability to leave it on for an extended period of time, giving it plenty of time to fill the pool. As it approaches the desired water level, you can then remotely turn it off. For devices like electric door strikes, set the output relay to momentary, allowing you to open the front gate using an Insteon remote or controller.

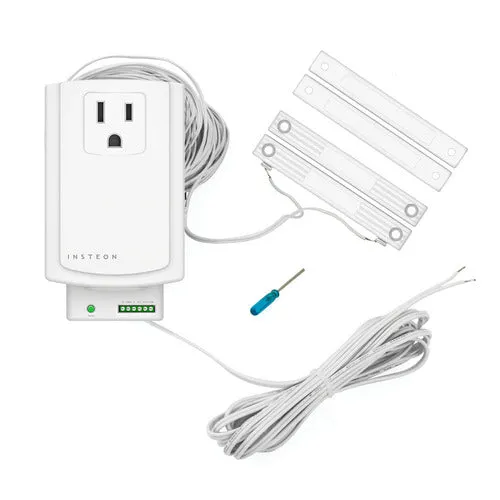

What's in the Box

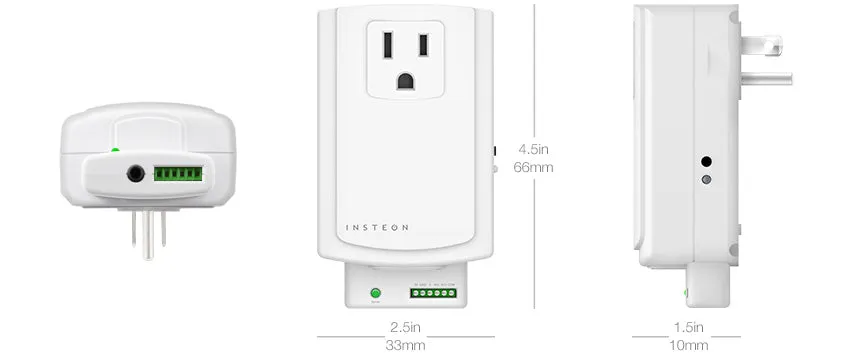

I/O Module - Insteon Low Voltage / Contact Closure Interface ( 1 In / 1 Out )

1x Magnetic Contact Sensors
1x 30 Foot 2 Conductor, 22-Gauge/AWG Interconnect Wire, White
1x 10 Foot 2 Conductor, 22-Gauge/AWG Interconnect Wire, White
1x 1.5mm flathead screwdriver
1x Quick Start Guide
