**Please note, this product is a non-stocked item and may have a lead time of up to 10 business days before can dispatch. Please contact us for more information.

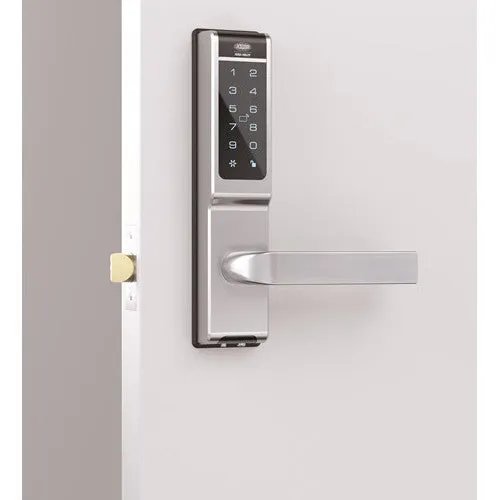

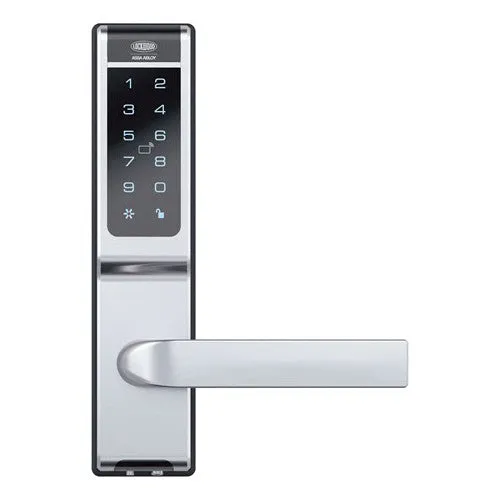

ASSA ABLOY’s Lockwood CORTEX® is leading the evolution of Digital Door Locks. CORTEX® is a commercial grade Digital Lockset that offers a standalone electronic access solution that can also be easily integrated to existing systems.
Innovative locking coupled with the durability and quality that is synonymous with the Lockwood brand, certifies Cortex as the premium choice for intelligent locking.
Moreover, CORTEX® is the first Australian digital lockset to be fire rated for 530 latch and Lockwood mortice variants and always has free egress from the inside.
The Lockwood CORTEX® features ultra-smooth lever action provided by the ergonomic Lever: 77A. Compliant with AS1428.1-2009 (Disabled accessible complaint levers); CORTEX® has undergone severe vandal testing and has a strength rating of up to SL8.
For more information please visit
| Product Details | |||
| CTX530 | CTX3772 | CTX5782 | |
| Finish | SC | SC | SC |
| Backset | 60mm | 60mm | 30mm |
| Lever | 77A | 77A | 77A |
| Door Thickness | 35-48mm | 35-48mm | 35-48mm |
| Body Material | Zinc Alloy | Zinc Alloy | Zinc Alloy |

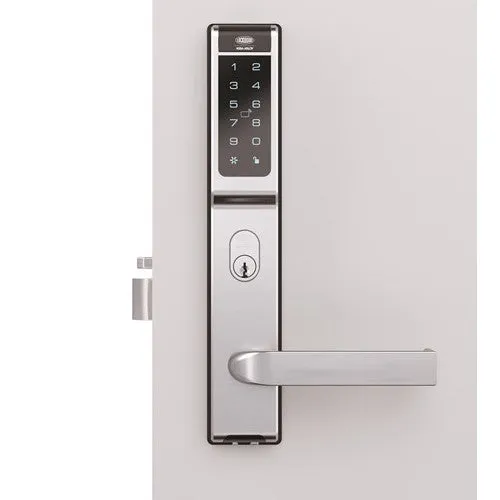

| Override Cylinder | No | Yes | Yes |
| Upgrade | DX530 | DX3572 | DX5582 |
| Fire Rating | Yes | Yes | No |
| Lock Type |
530 Tubular Latch *3772,3572 |
3772 3572 |
5782 5582 |
* CTX530 can be installed over standard plate furniture and will operate with 3772, 3572 mortice locks. (No Key override)
| Standards and Compliance | |
| Successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1 2005 - Part1: Fire Resistant Doorsets. | |
| (Security) Australian Lock Standard (AS4145.2:1993). | |
| (Durability) Australian Lock Standard (AS4145.2:1993). | |
| Disabled Accessible. AS1428.1-2009 Lever | |
| Australian Electrical Regulatory Compliance | |
|
|
European Electric Compliance |
