Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Display Colors | Green, Red |
| Display Type | Multi Line |
| Enclosure Rating | IP65 |
| Function | Controller |
| Input Type | Analogue Current/Voltage |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Mounting Type | Panel Mount |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Output Type | Analog |
| Primary Type | Process Controller |
| Series | |
| Size | 49.5 x 49.5 mm |
| Special Features | Programmable User Input |
| Supply Voltage | 85-250 VAC |
| Temperature Operating Range | 0 to 50°C |

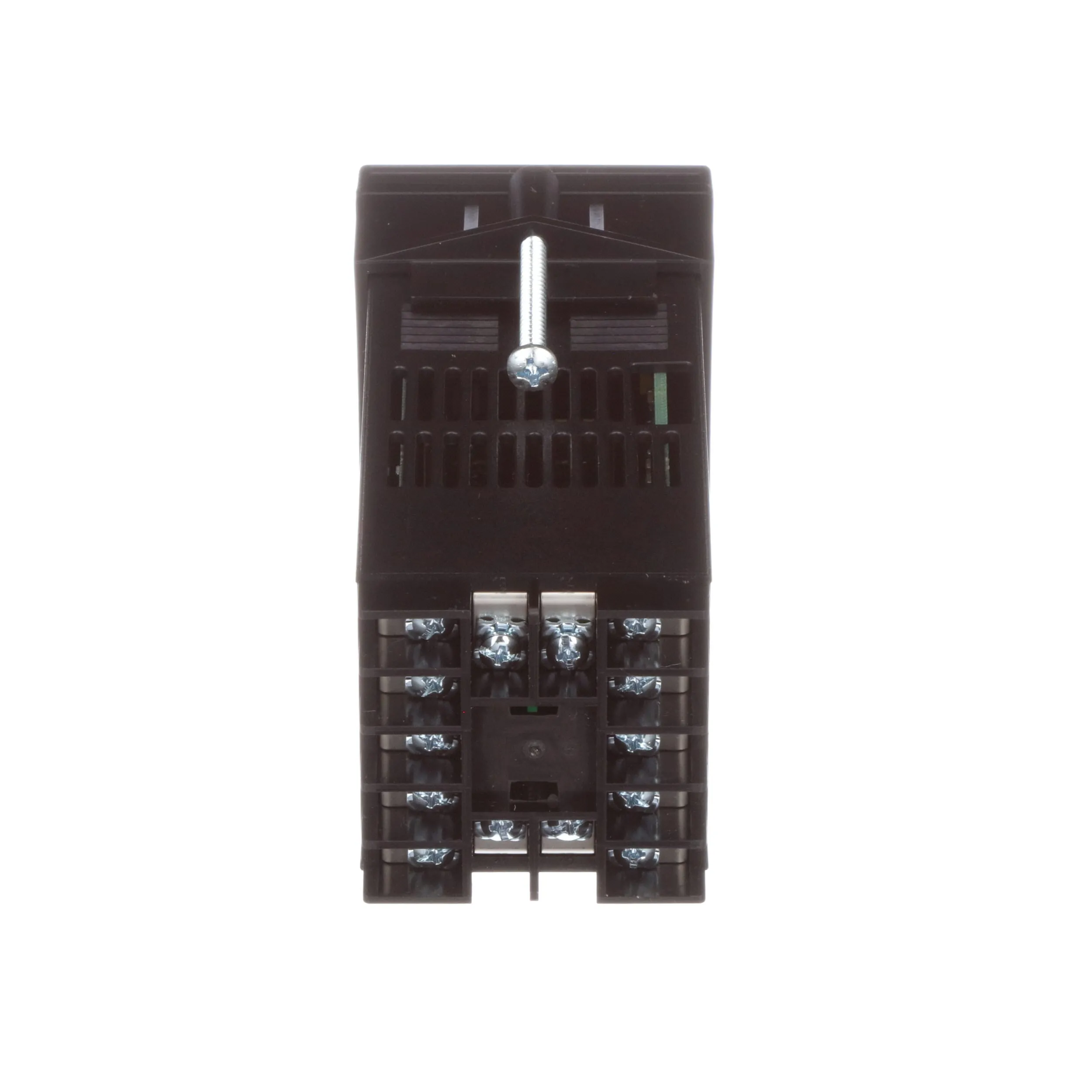

| Termination | Screw |
| Type | PID Temperature Controller |
Overview

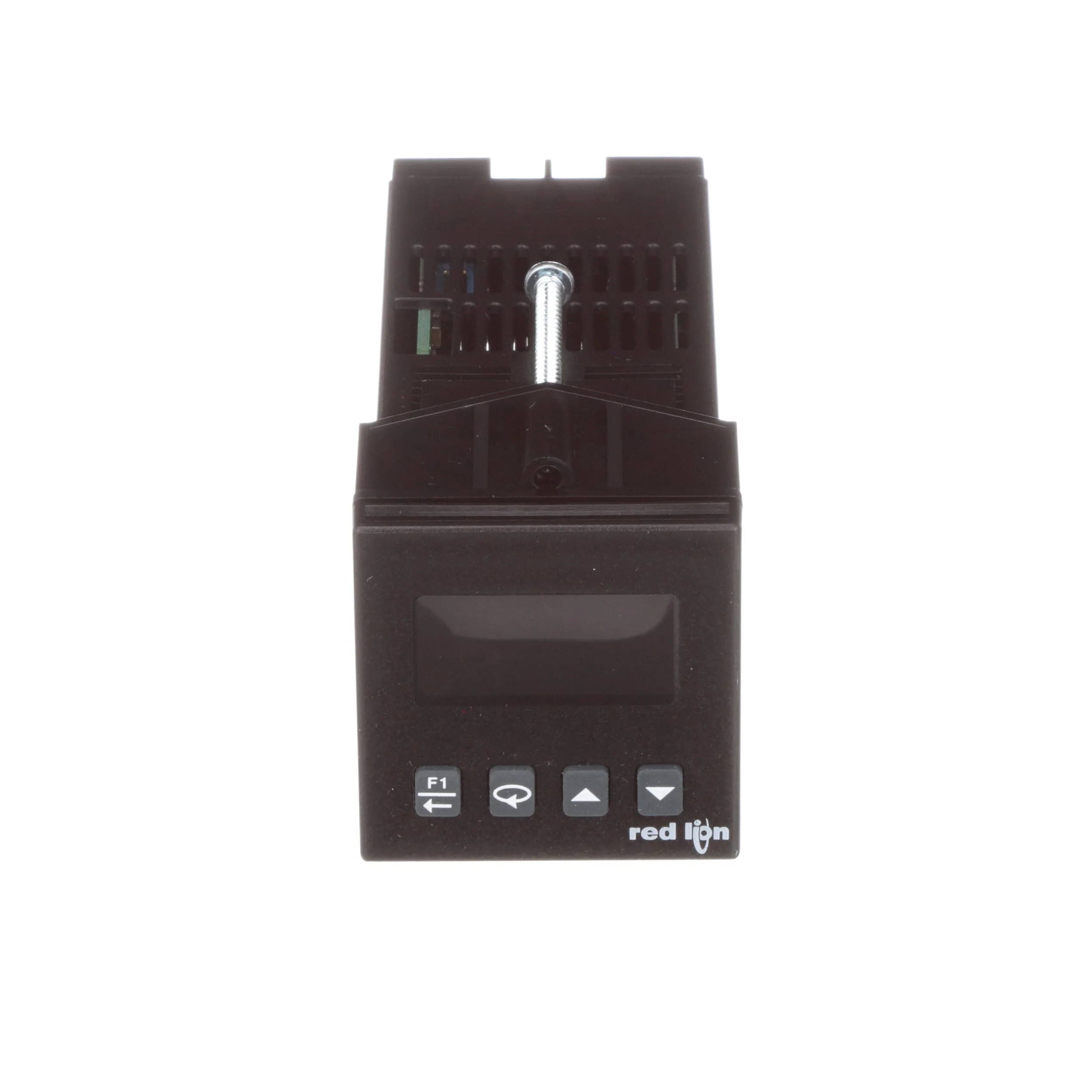

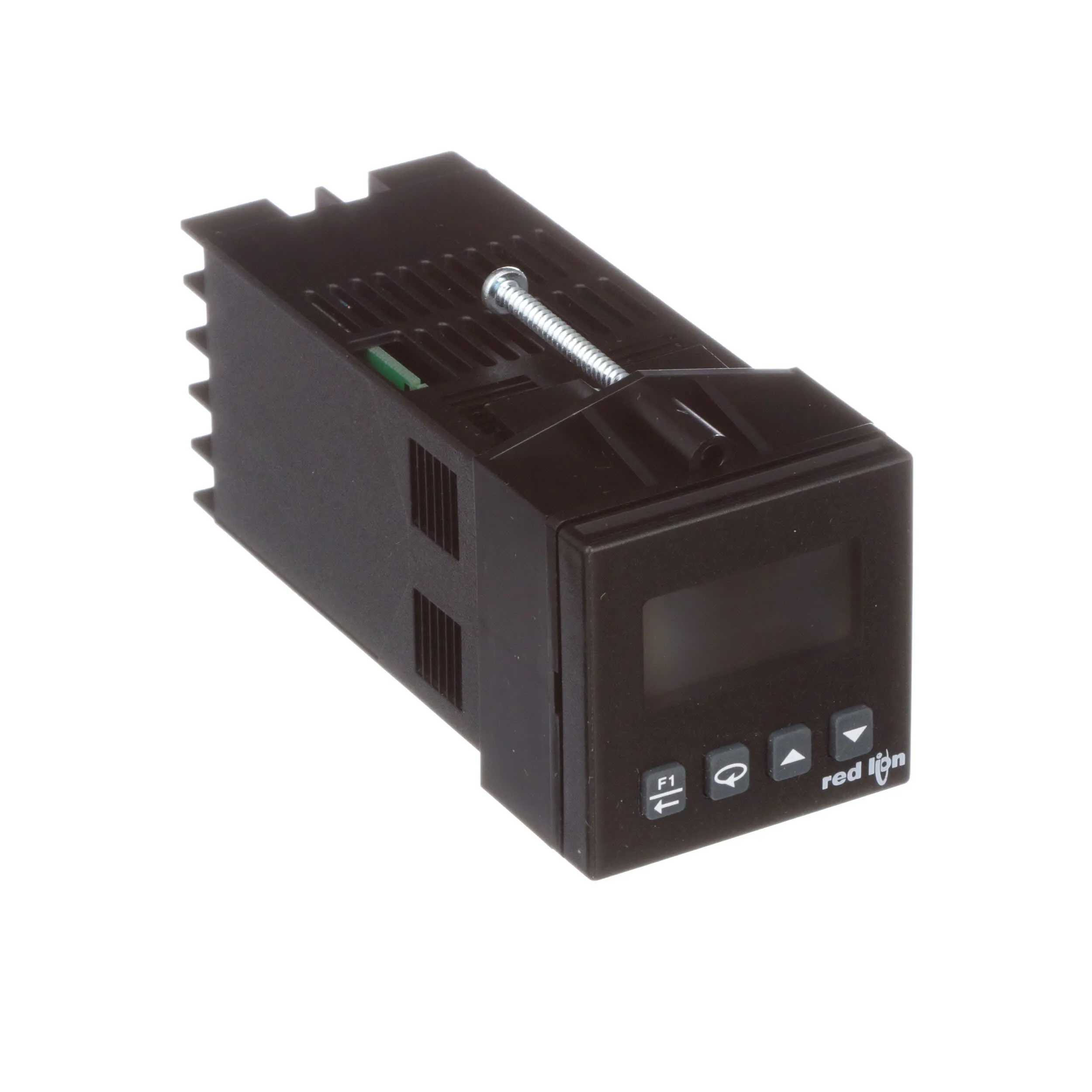

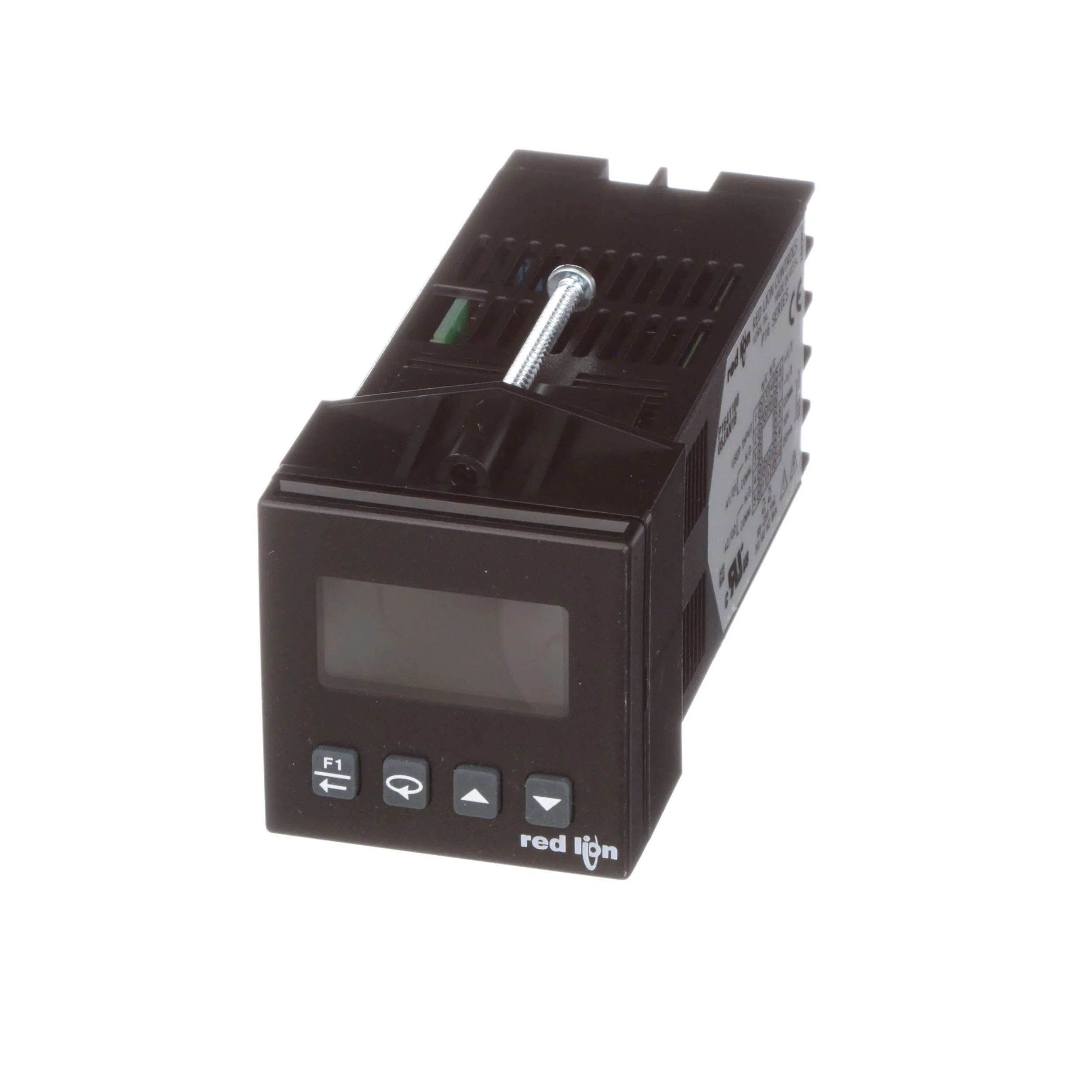

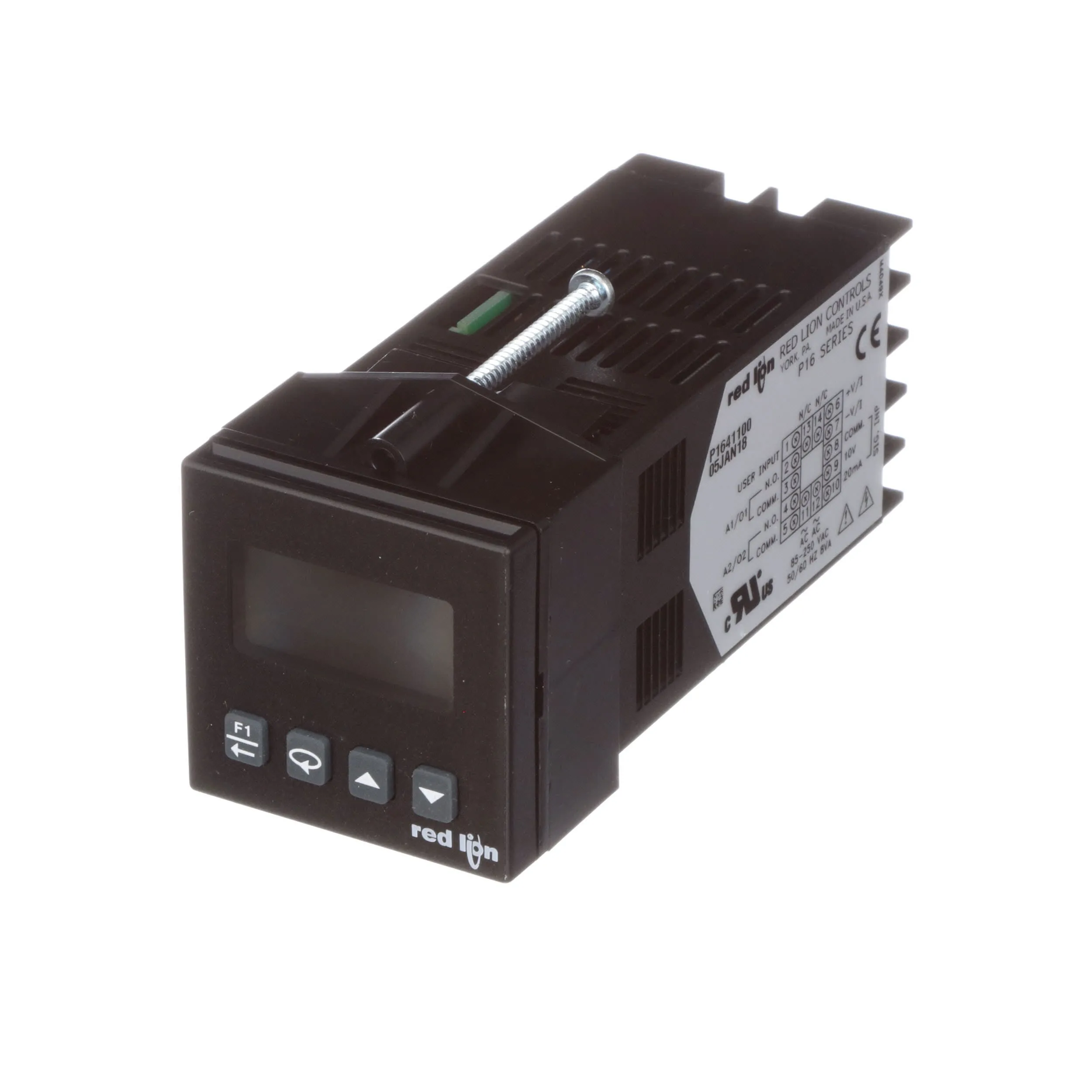

The Model T16 Controller accepts signals from a variety of temperature sensors (thermocouple or RTD), while the Model P16 Controller accepts either a 0 to 10 VDC or 0/4 to 20 mA DC input signal. Both controllers can provide an accurate output control signal (time proportional or DC Analog Output) to maintain a process at a setpoint value. Dual 4-digit displays allow viewing of the process/temperature and setpoint simultaneously. Front panel indicators inform the operator of the controller and output status. The comprehensive programming allows these controllers to meet a wide variety of application requirements.
