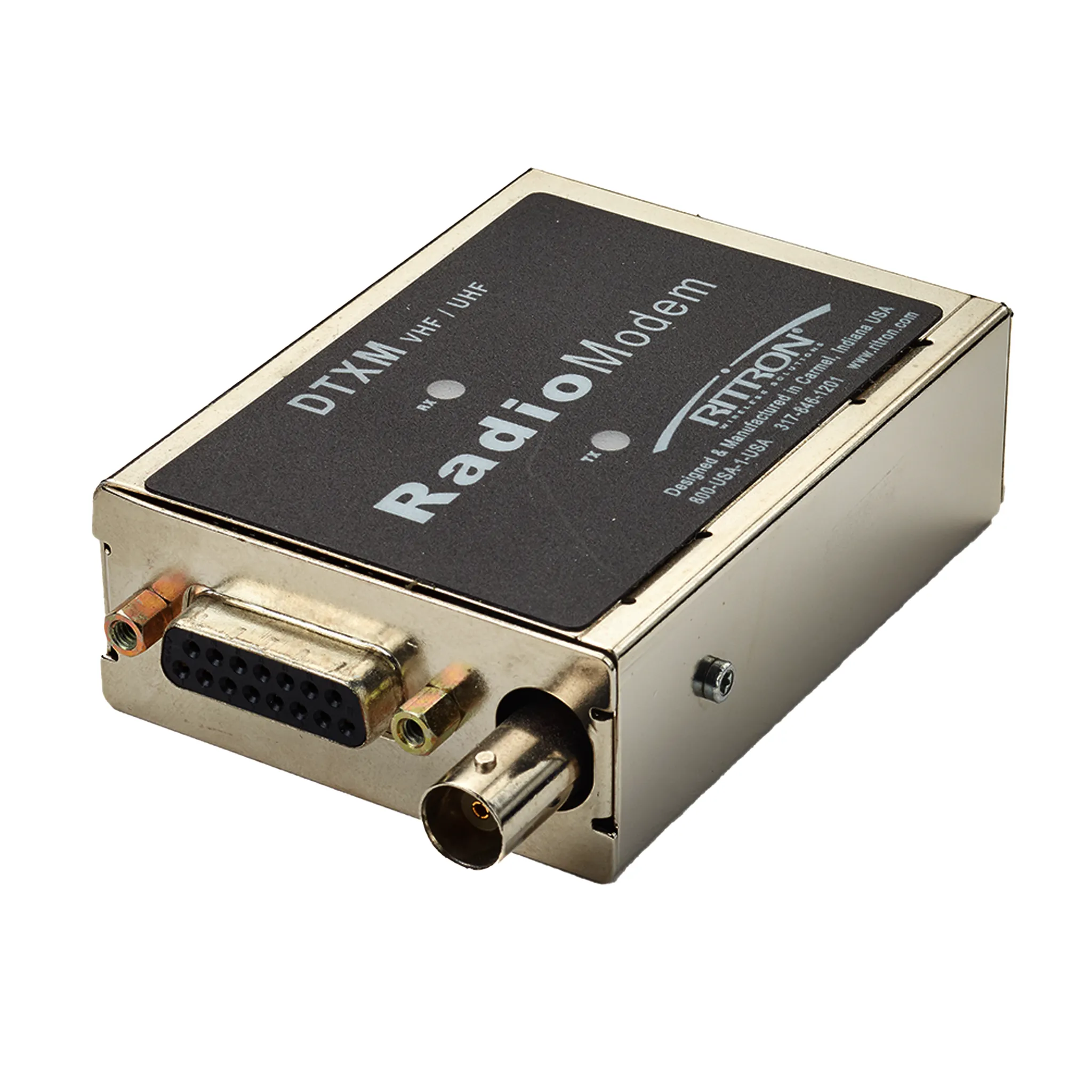

Ritron DTXM
RADIO MODEM AND DIGITAL TRANSCEIVER
The DTXM Radio Modem is a high performance Wireless Modem that supports blazing over-the-air data rates of 9600 bps in a 12.5 kHz channel, and 4800 bps in a 6.25 kHz channel. High performance specifications permit integration into systems that demand the utmost in reliability in high-traffic, frequency congested environments.
Direct modulation with low distortion and low group delay result in low bit-error-rate (BER) for enhanced system integrity and reliability. Utilizing the same Swift Lock synthesizer used by the DTX RF transceiver for transmit and receive attack times of 15 ms or less for high-speed data throughput. Also, the Controlled Envelope keying reduces adjacent channel "keyclicks" resulting in spectrum-friendly operation.
DTXM KEY FEATURES
- Ultra Narrow Band (6.25 kHz)/ Narrow Band (12.5 kHz)/ Wide Band (25kHz)
- 4800 bps Ultra Narrow Band, 9600 bps Narrow Band, 19,200 bps Wide Band
- Broadband TX/RX Design:
- 36 MHz VHF
- 28 MHz 220 MHz
- 20 MHz UHF
- RS-232 Interface
- SMD Component Design
- Ultra Fast TX/RX Attack Times
- Controlled Envelope TX Keying
- Designed and Made in the USA
- Meets FCC and IC (Canada) Standards
- Programmable electronics Settings and Adjustments
- Programmable High/Low Output Power
- Custom Frequency Ranges Available
- Supports Streaming and Packet Operation
DTXM KIT INCLUDES:
- Synthesized RF Transceivers with Control Board
- Enclosure
- BNC Antenna Connector
- DB-15 Data/Power Connector
| Model | Frequency | Watts | Voltage Req |
| DTXM-160-0BN6I |
136-174 MHZ | 1-6 | 10-15 VDC |
| DTXM-160-0BN6D | 136-174 MHZ | 1-6 | 7.5 VDC |
| DTXM-460-GBN6I | 400-430 MHZ | 1-6 | 10-15 VDC |
| DTXM-460-GBN6D | 400-430 MHZ | 1-6 | 7.5 VDC |
| DTXM-460-0BN3I | 450-470 MHZ | 1-3 | 10-15 VDC |
| DTXM-460-0BN3D | 450-470 MHZ | 1-3 | 7.5 VDC |
| DTXM-460-0BN6I | 450-470 MHZ | 1-6 | 10-15 VDC |
| DTXM-460-0BN6D | 450-470 MHZ | 1-6 | 7.5 VDC |
| DTXM-460-0BN9L | 450-470 MHZ | 10 | 11-16 VDC |
WARRANTY
* 1-year manufacturer's warranty.
