Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Cylindrical |
| IP Rating | IP67 |
| Light Source | Infrared |
| Maximum Current | 100 mA |
| Measurement Range | 0.2 m |
| Output | PNP |
| Output Type | PNP |
| Sensing Mode | Diffuse |
| Shop By | Factory Choice |
| Standards | UL Listed, CE, cUL Certified |
| Supply Voltage | 30 VDC |
| Temperature Operating Range | -25 to 70 °C |
| Type | Reflective Sensors |
Overview

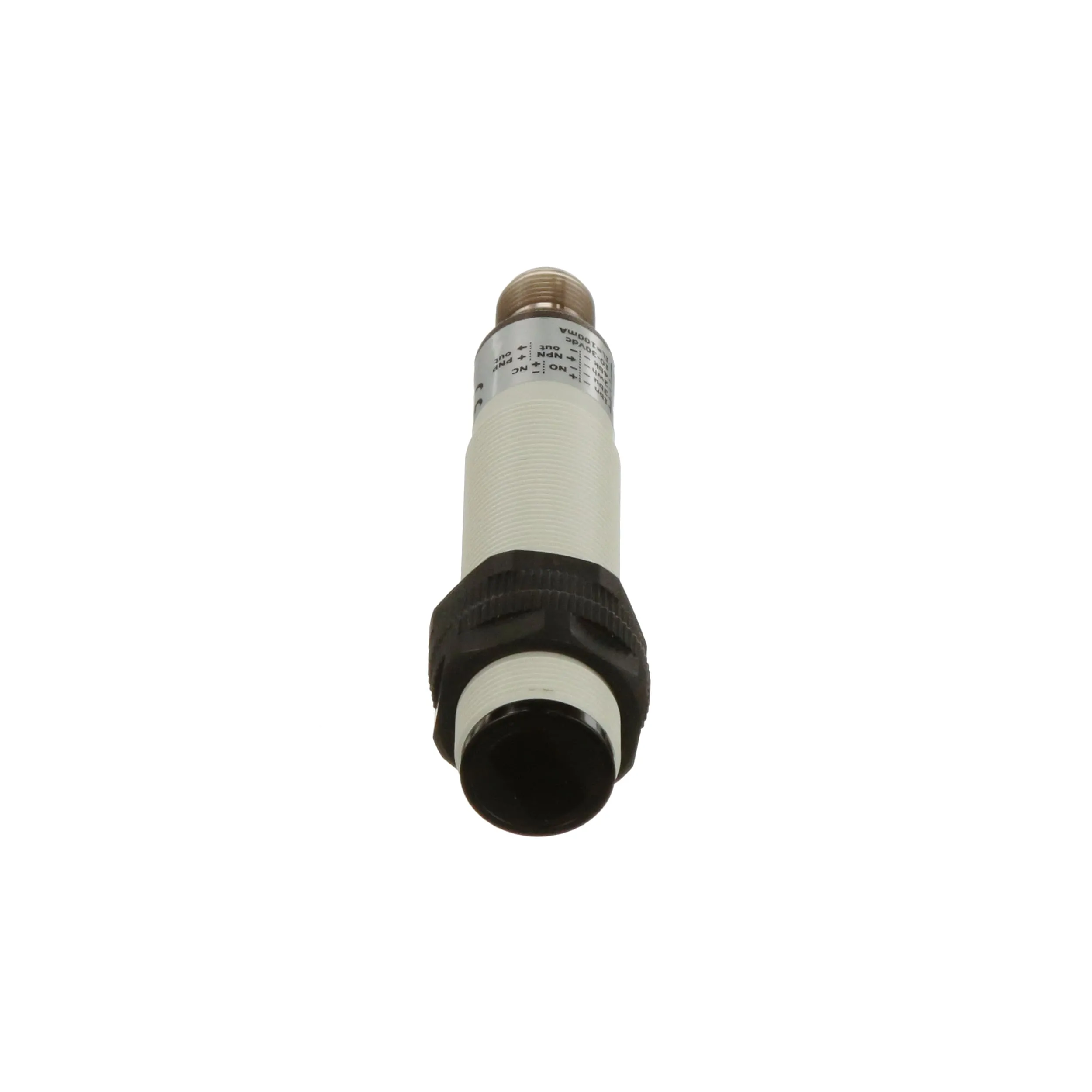

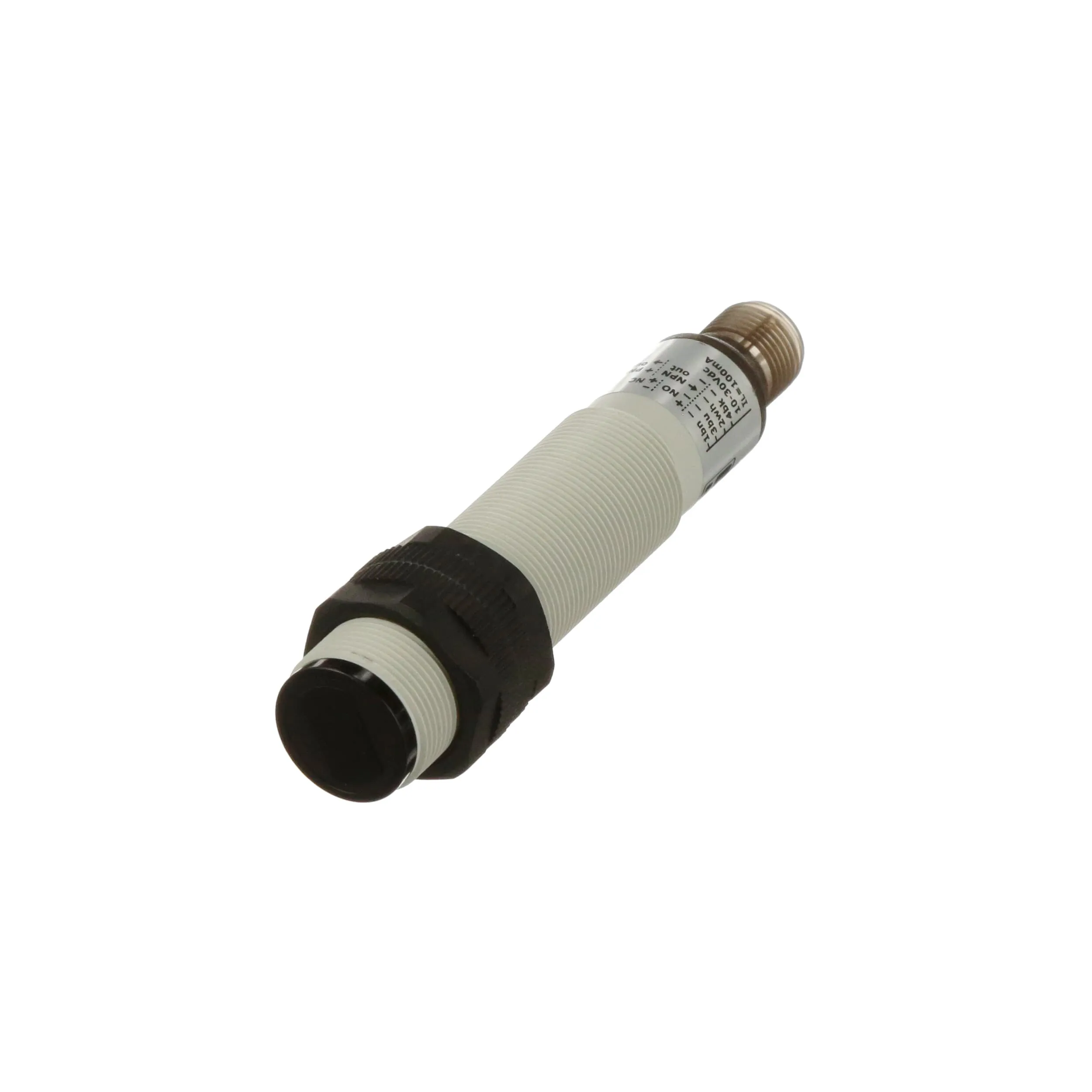

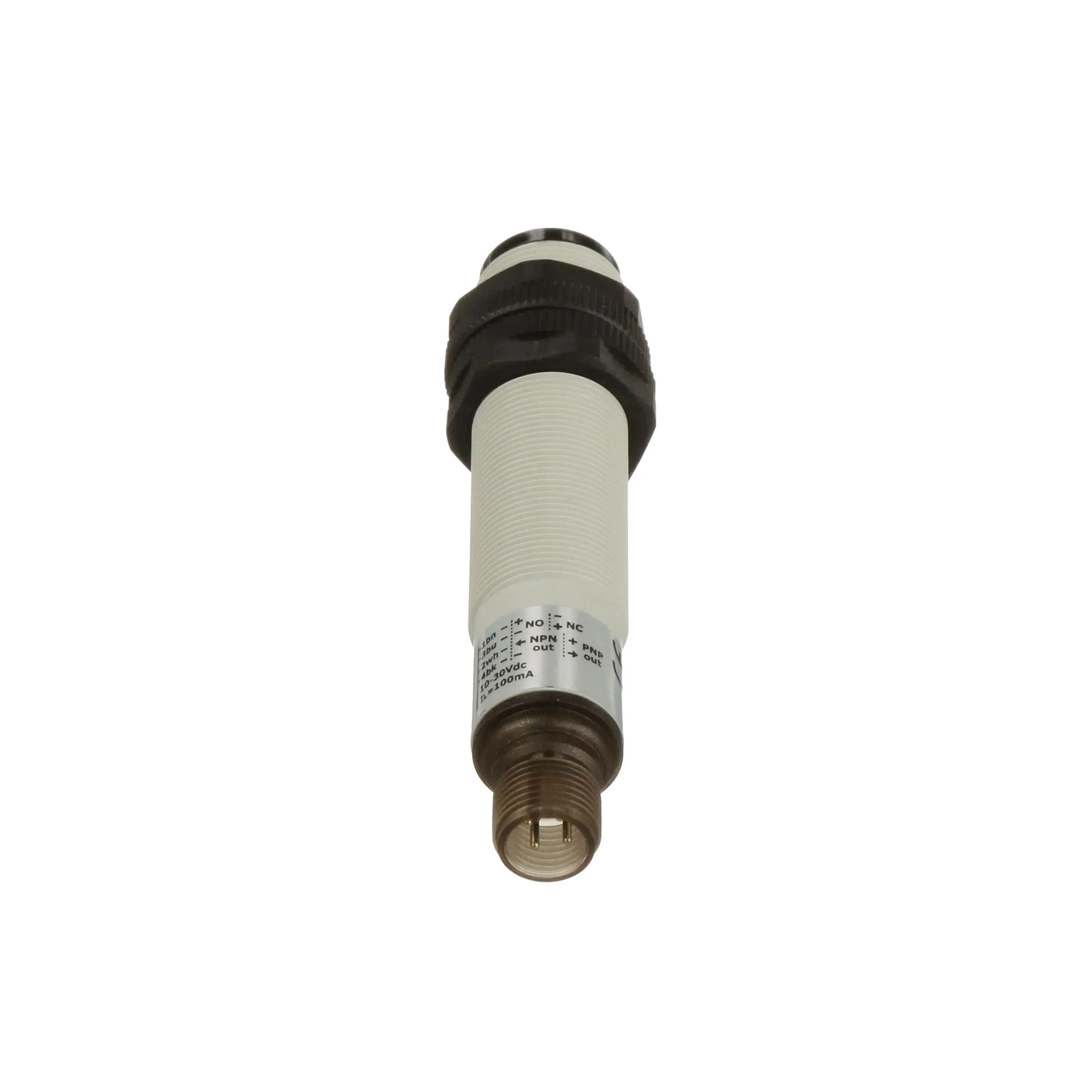

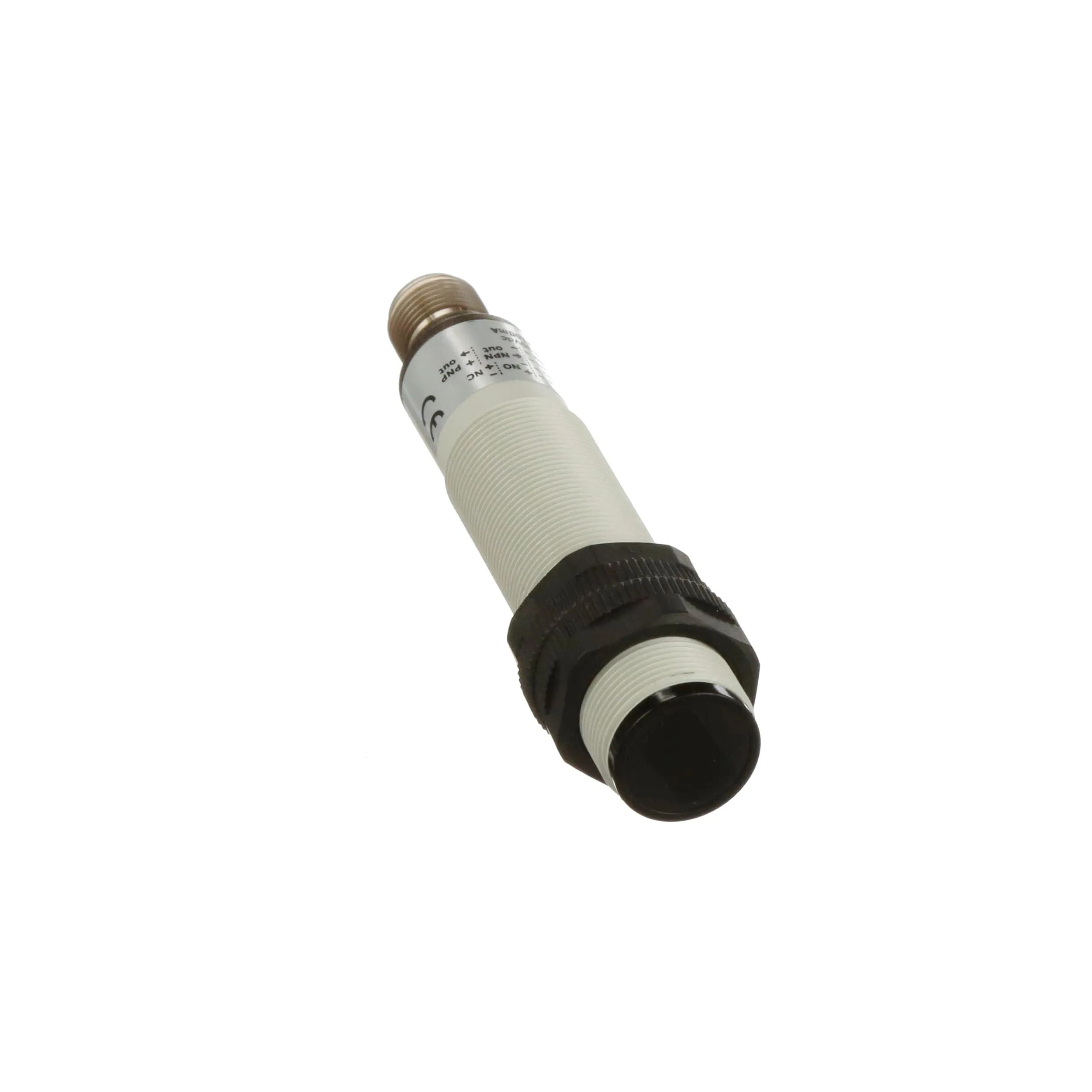

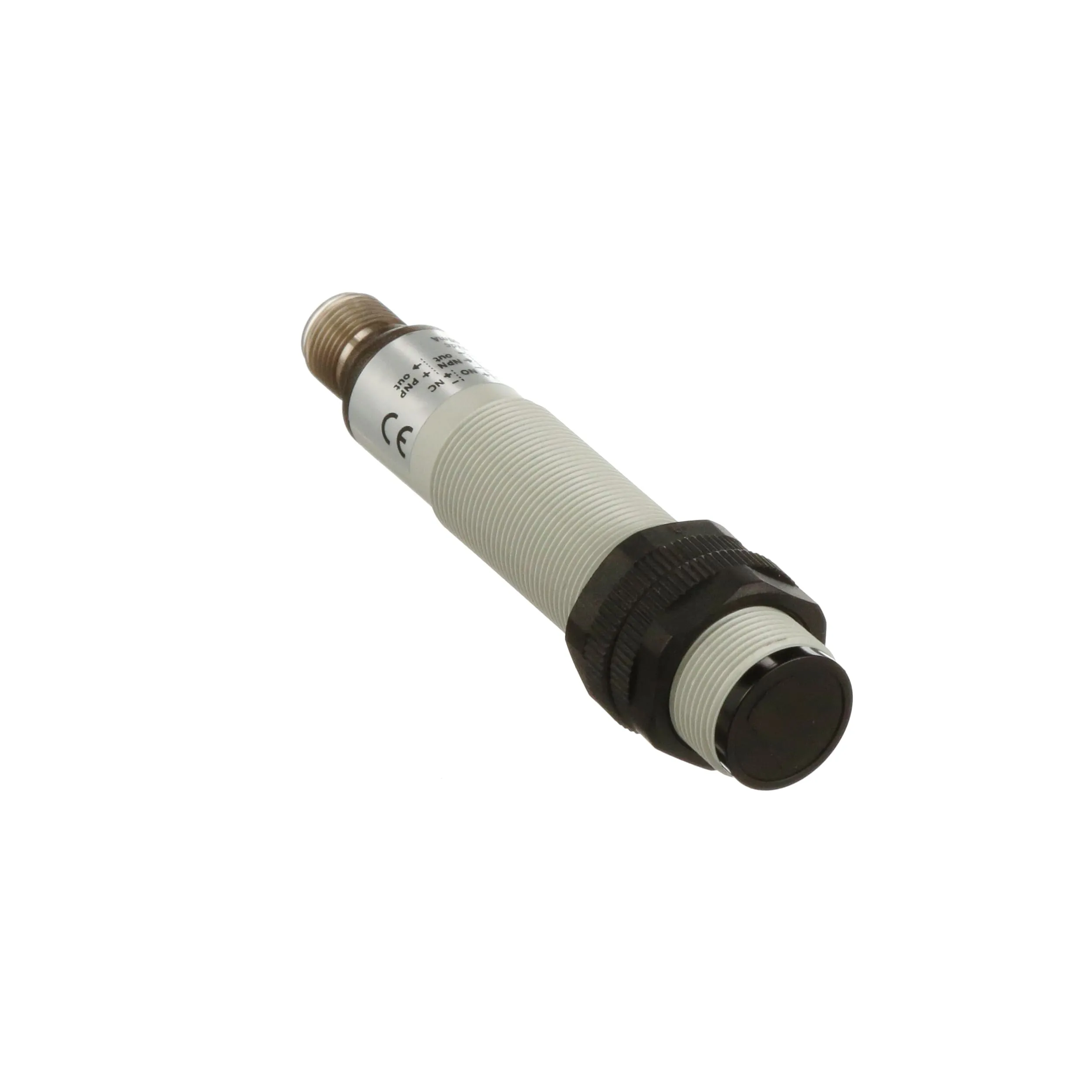

Optical Proximity Switch, Plastic
Plug-in
Yellow polyamide housing sealed to IP67
LED status indication
Modulated infrared light operation
Opto isolated outputs
Output short circuit protected
