Description:

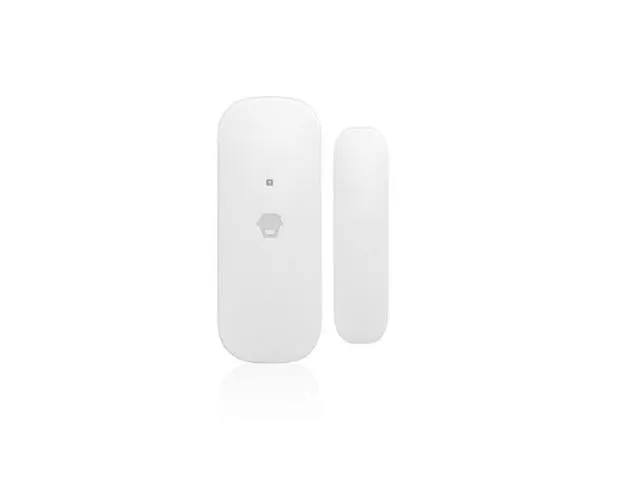

The DS2300 works well with any door window or opening. When triggered (separated) an alarm signal will be sent to the system for appropriate response. it also comes with tamper protection to ensure system integrity and can work with other wired detectors.

Specifications:

Power Supply: DC 3V (CR2032 button cell battery x 2) Static Current: ≤ 1 uA Alarm Current: ≤ 10.5 mA Transmitting Distance: ≤ 80 m (open area/no interference) Radio Frequency: 915 MHz (�75KHz) Housing Material: ABS plastic Operation Condition: Temperature 0�C ~ 55�C Relative Humidity ≤80% (Non-condensing) Transmitter Dimensions (LxWxH): 72 x 28 x 10 mm Magnet Dimensions (LxWxH): 58 x 14 x 9.5 mm|
